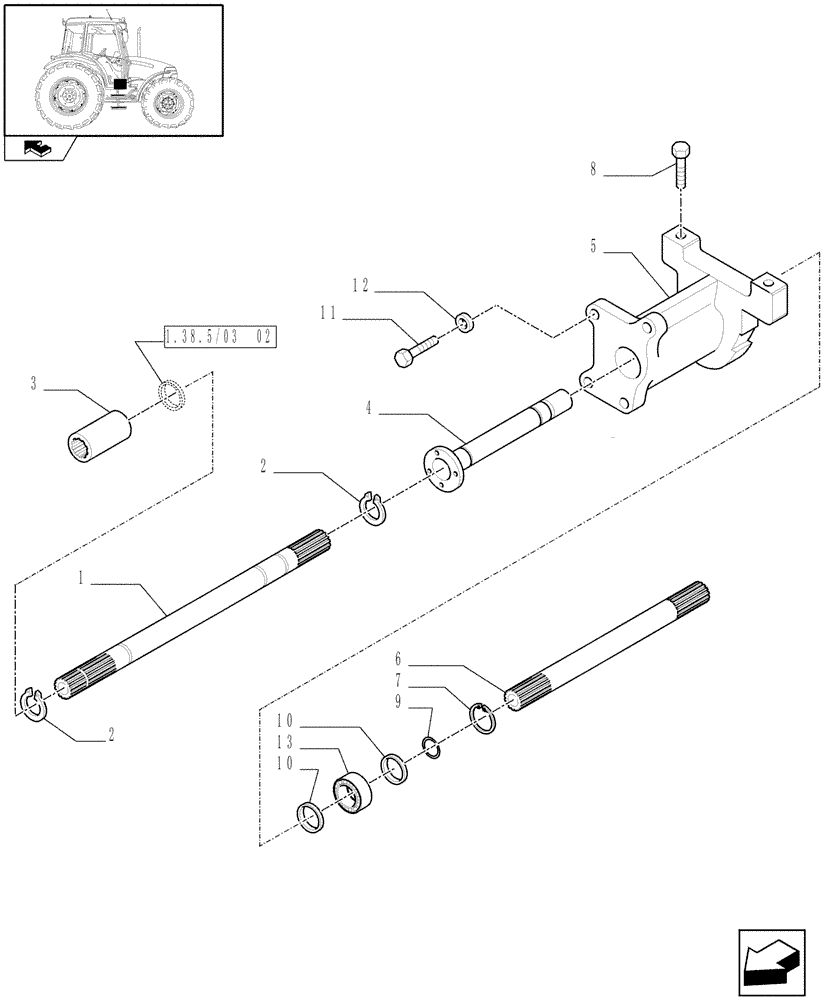

Запчасти Case IH FARMALL 60 (1.38.5/03[01]) - 4WD WATER PROOF TRANSMISSION - 4WD PROPELLER SHAFT (VAR.330449) (04) - FRONT AXLE & STEERING

1

84121193

SHAFT

1шт.

2

11067776

SNAP RING,M29, Ext

8шт.

3

5199243

SPLINED COUPLING

2шт.

4

84121194

SHAFT

1шт.

5

84121305

SUPPORT

1шт.

6

5149571

PROPELLER SHAFT

1шт.

7

11061376

SNAP RING,M68, Int

M68

1шт.

8

14233434

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

9

11068876

SNAP RING,M40, Ext

1шт.

10

5143488

RING

2шт.

11

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

13

9802733

BALL BEARING,40mm ID x 68mm OD x 15mm W

1шт.
