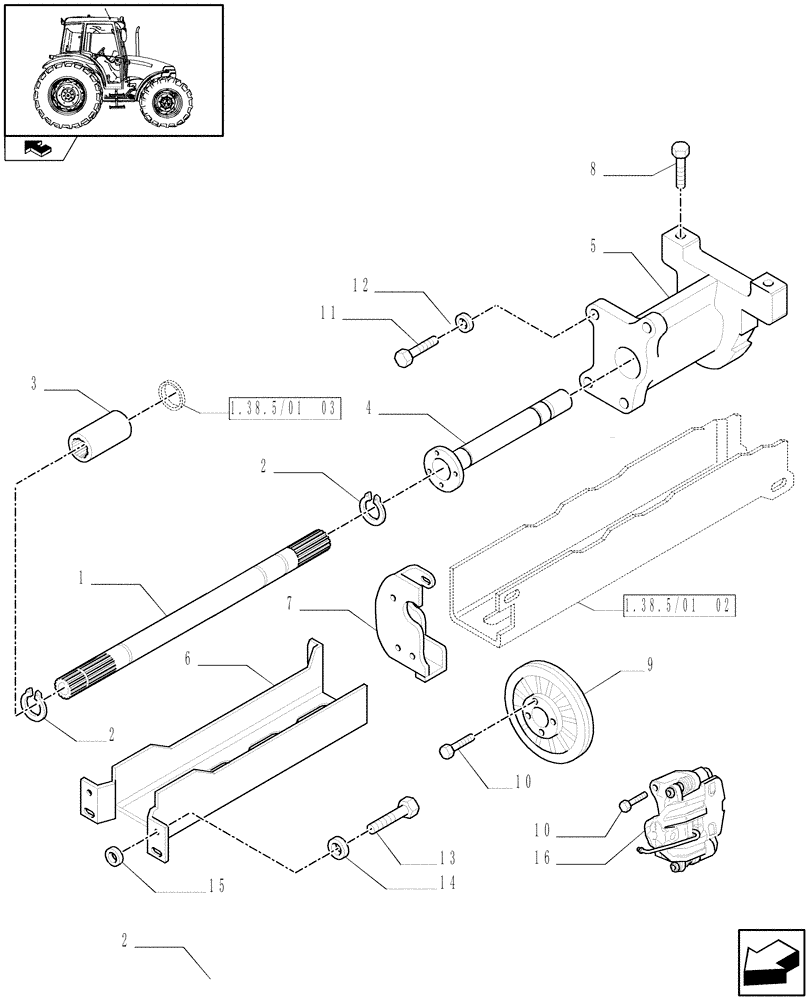

Запчасти Case IH FARMALL 60 (1.38.5/01[01]) - 12X12 (40KM/H) TRANSMISSION W/FRONT BRAKE & LIMITED SLIP - 4WD PROPELLER SHAFT (VAR.335108-335115-743904-335324-743907) (04) - FRONT AXLE & STEERING

1

84121193

SHAFT

1шт.

2

11067776

SNAP RING,M29, Ext

8шт.

3

5199243

SPLINED COUPLING

2шт.

4

84121194

SHAFT

1шт.

5

84121305

SUPPORT

1шт.

6

84122123

GUARD

1шт.

7

87595464

SHIELD

1шт.

8

14233434

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

9

5161748

BRAKE DISC

1шт.

10

14233034

LOCK BOLT,Hex, M10 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

11

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

13

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

14

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

6шт.

15

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

16

87590457

BRAKE CALIPER

1шт.
