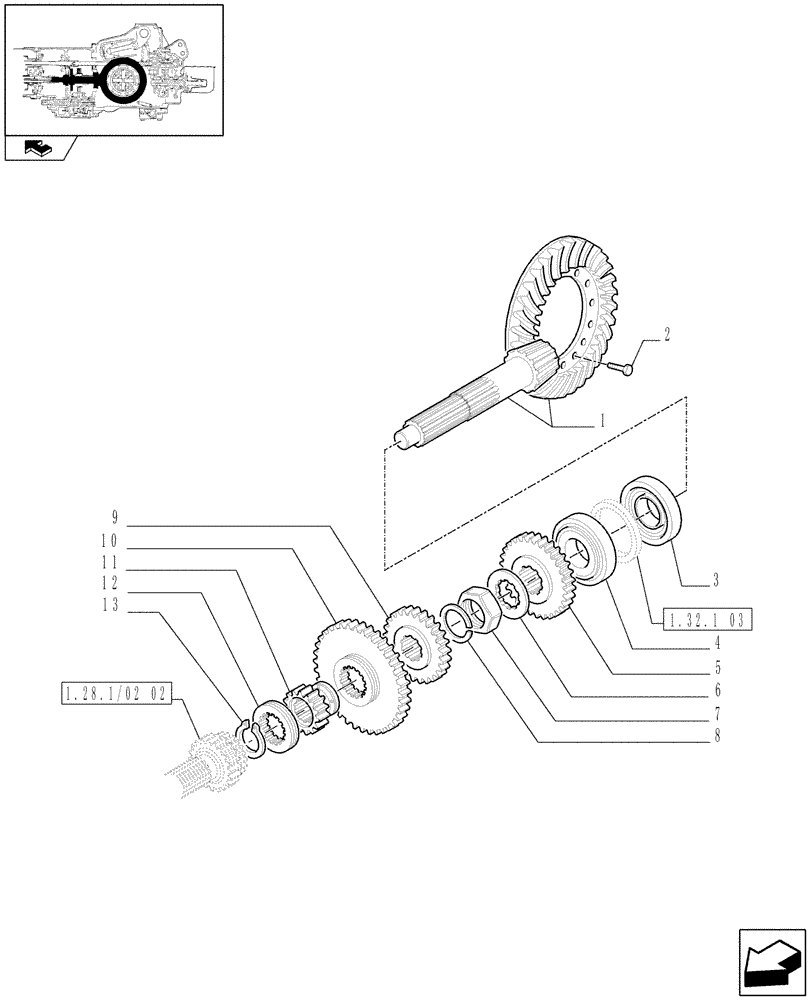

Запчасти Case IH FARMALL 60 (1.32.1/01[01]) - 12X4 (30KM/H) SYNCHROMESH TRANSMISSION - BEVEL GEAR PAIR (VAR.335115-743904) (03) - TRANSMISSION

1

5089351

BEVEL GEAR

1шт.

Valid for 60 and 70 Models only

1шт.

1

5153715

BEVEL GEAR

1шт.

Valid for 80 Model only

1шт.

2

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

Valid for 60 and 70 Models only

1шт.

2

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

Valid for 80 Model only

1шт.

3

5138664

TAPERED BEARING,45mm ID x 100mm OD x 38.25mm W

45 x 100 x 38.2

1шт.

4

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

1шт.

5

5125005

DRIVEN GEAR

1шт.

6

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

7

5117744

NUT

1шт.

8

5127762

HALF-RING

2шт.

9

5145165

GEAR

1шт.

10

5125007

DRIVEN GEAR

1шт.

11

5125009

SPLINED COUPLING,10T Internal / 23T External

1шт.

12

5125010

SLEEVE,23T

1шт.

13

11068976

SNAP RING,M42, Ext

1шт.
