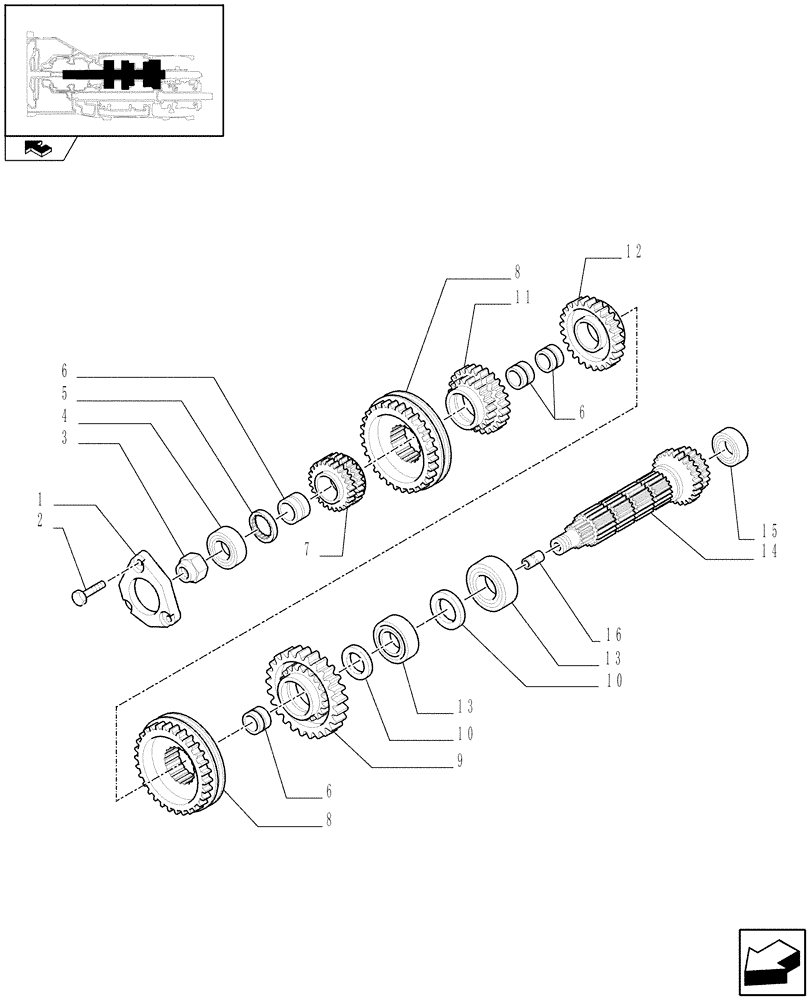

Запчасти Case IH FARMALL 60 (1.28.1/02[02]) - 12X4 (30KM/H) SYNCHROMESH TRANSMISSION - SYNCHRONIZER AND DRIVEN SHAFT (VAR.335116) (03) - TRANSMISSION

1

5162671

COVER

1шт.

2

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

6шт.

3

5122985

NUT,Ring, M32, 1.5 Pitch

M32 x 1.5

1шт.

4

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

35 x 80 x 21

1шт.

5

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

1шт.

6

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

7

5172050

DRIVEN GEAR

4th Speed

1шт.

8

5188093

SYNCHRONIZER

4шт.

9

5172047

DRIVEN GEAR

1st Speed, 52T and 38T

1шт.

10

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1st Speed

1шт.

11

5179673

DRIVEN GEAR

2шт.

12

5172048

DRIVEN GEAR

2nd Speed

1шт.

13

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

Valid for 60 and 70 Models only

1шт.

13

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

1шт.

Valid for 80 Model only

1шт.

14

5127958

DRIVEN SHAFT

1шт.

15

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

27.5 x 52 x 21

1шт.

16

5145131

RIGID TUBE

1шт.
