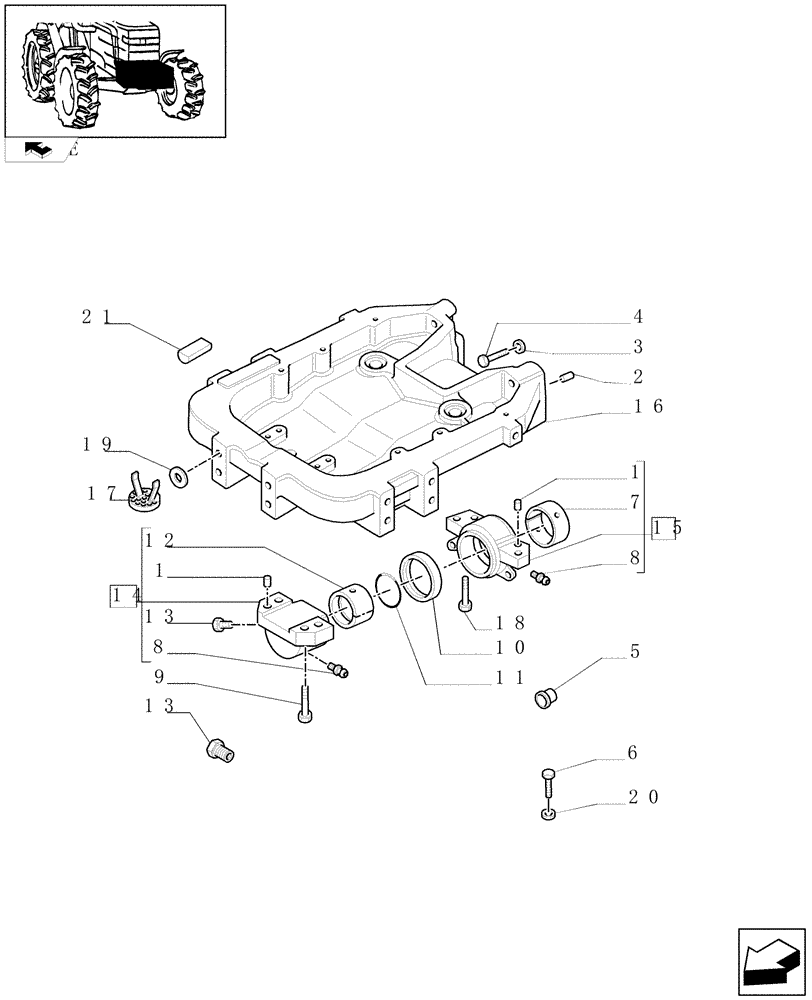

Запчасти Case IH FARMALL 60 (1.21.1) - SUPPORT (03) - TRANSMISSION

1

10837710

DOWEL,M10 x 25

2шт.

4WD only

1шт.

2

4668595

DOWEL,18mm OD x 22mm L

2шт.

3

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

20 x 38 x 5.2

4шт.

4

15989534

SCREW,Hex, M20 x 1.5 x 120mm

M20 x 1.5 x 120

2шт.

5

590353

PLUG,15mm OD x 10mm High, Plastic

1шт.

6

10837810

DOWEL,M12 x 30.00mm

D=12

2шт.

4WD only

1шт.

6

15983824

BOLT,Hex, M18 x 1.5 x 35mm, Cl 8.8

12шт.

2WD only

1шт.

7

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

4WD only

1шт.

8

13407211

LUBE NIPPLE,M10 x 1

1шт.

4WD only

1шт.

9

14272031

BOLT,Hex, M18 x 1.5 x 65mm

M18 x 1.5 x 65

2шт.

4WD only

1шт.

10

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

99 x 115 x 7.5

2шт.

4WD only

1шт.

11

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

4WD only

1шт.

12

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

52 x 57 x 42

1шт.

4WD only

1шт.

13

13411117

VALVE PRESSURE RELIE,M10, Black

2шт.

4WD only

1шт.

14

5140452

SUPPORT

80 Models only

1шт.

4WD only

1шт.

14

5111886

SUPPORT

60 Models, 70 Models only

1шт.

4WD only

1шт.

15

5140454

SUPPORT

1шт.

4WD only

1шт.

15

5111887

SUPPORT

1шт.

4WD only

1шт.

16

87677750

AXLE SUPPORT

4WD

1шт.

4WD only

1шт.

16

87677745

AXLE SUPPORT

2WD

1шт.

2WD only

1шт.

17

5120218

GRILLE

1шт.

18

14272934

BOLT,Hex, M18 x 1.5 x 140mm, Cl 10.9

2шт.

19

47128135

SHIM,21mm ID x 40mm OD x 1.8mm Thk, Yellow

Yellow

1шт.

19

47128136

SHIM,21mm ID x 40mm OD x 2.0mm Thk, Red

Red

1шт.

19

47128137

SHIM,21mm ID x 40mm OD x 2.2mm Thk, Green

Green

1шт.

19

47128138

SHIM,21mm ID x 40mm OD x 2.4mm Thk, Blue

Blue

1шт.

20

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

12шт.

2WD only

1шт.

21

84205922

PLUG

1шт.
