(1.21.0/01[02]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - REAR TRANSMISSION BOX (VAR.335113-335115-336115-743904)

Запчасти Case IH FARMALL 60 (1.21.0/01[02]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - REAR TRANSMISSION BOX (VAR.335113-335115-336115-743904) (03) - TRANSMISSION

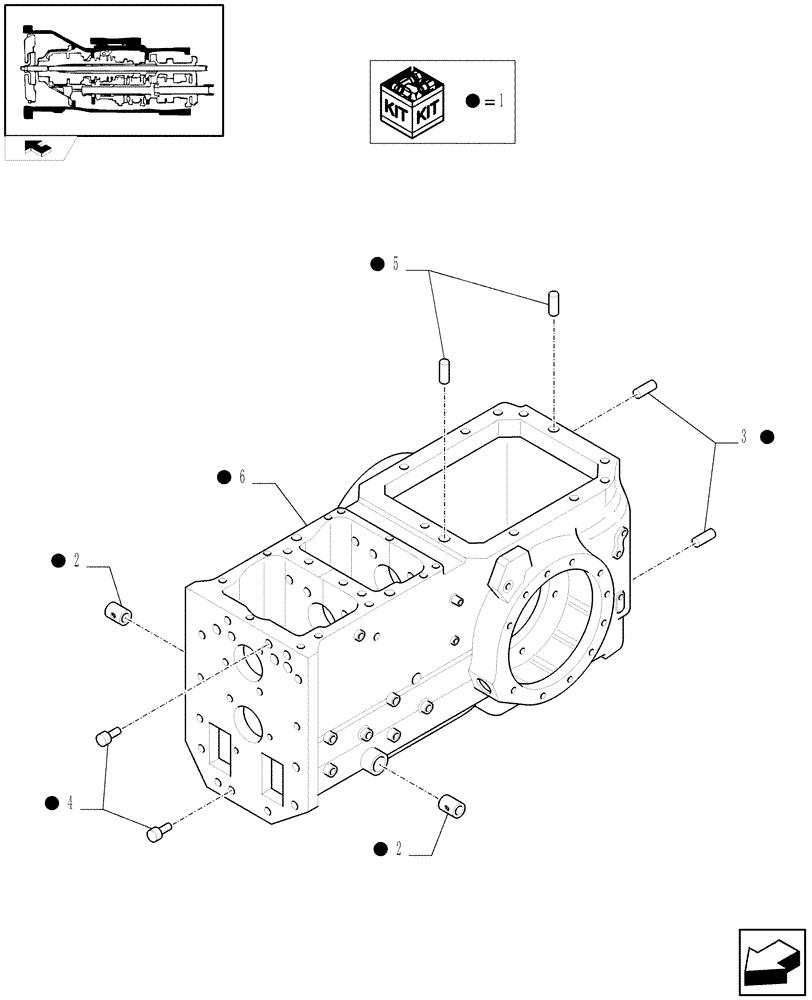

Схема запчастей Case IH FARMALL 60 - (1.21.0/01[02]) - 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - REAR TRANSMISSION BOX (VAR.335113-335115-336115-743904) (03) - TRANSMISSION
6
3
2
2
5
1
1
4
home
1
1
1
1
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84154399

HOUSING

1шт.

2

5118942

BUSHING,30.05mm ID x 34mm OD x 30mm L

1шт.

3

10839810

DOWEL,12mm OD x 18mm L

M12 x 18

2шт.

3

10839910

DOWEL,15mm OD x 20mm L

M15 x 20

2шт.

4

5163325

DOWEL

2шт.

5

5119529

DOWEL,15mm OD x 22mm L

2шт.

6

84147585

HOUSING

1шт.

Выбрано товаров: 7
