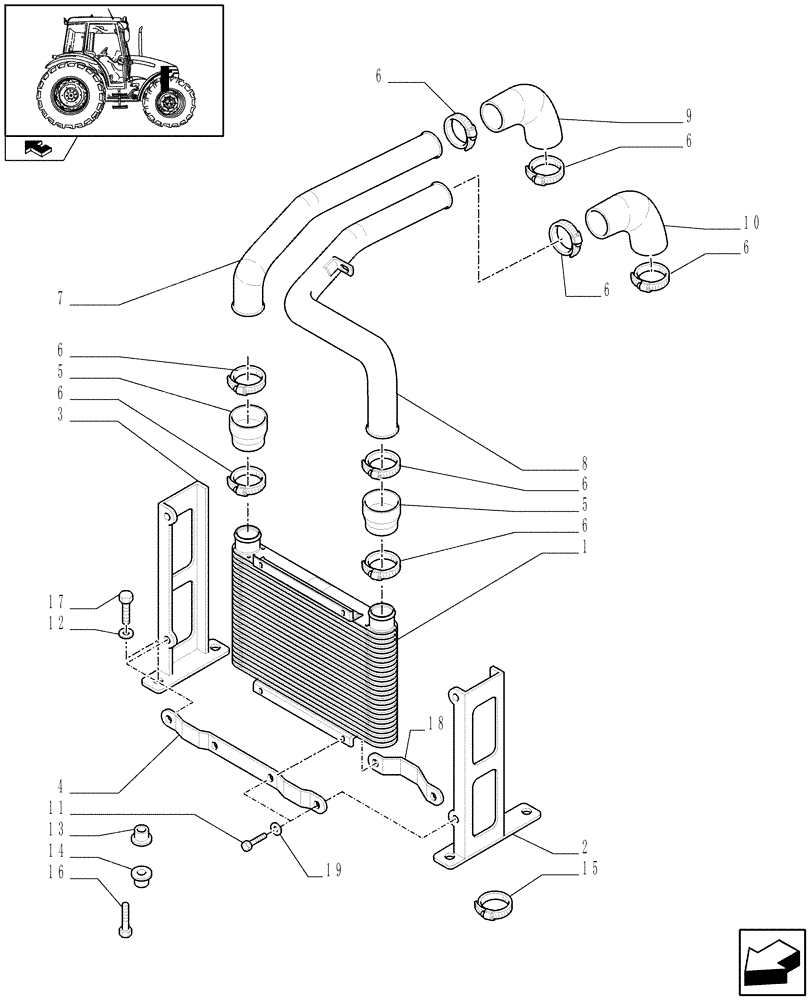

Запчасти Case IH FARMALL 60 (1.19.1[02A]) - INTERCOOLER AND RELATED PARTS - D6750 (02) - ENGINE EQUIPMENT

1

87541604

HEATER

1шт.

2

84290912

SUPPORT

LH

1шт.

3

84290883

SUPPORT

RH

1шт.

4

84291558

SUPPORT

1шт.

5

87609026

LARGE HOSE

HOSE,LARGE

2шт.

6

5085782

CLAMP

7шт.

7

84178332

PIPE

RH

1шт.

8

84291730

PIPE

LH

1шт.

9

87722669

INTAKE AIR HOSE,51.00 mm ID, 60.00 mm ID x 140.00 mm

1шт.

10

87722450

LARGE HOSE

HOSE,LARGE

1шт.

11

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

12

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

4шт.

13

47131590

SPACER,8.5mm ID x 26mm OD x 10mm Thk

4шт.

14

47131603

PAD,14mm ID x 26mm OD x 8mm Thk

4шт.

15

5098813

COLLAR,60mm - 80mm

1шт.

16

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

17

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

18

84291557

SUPPORT

2шт.

19

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.
