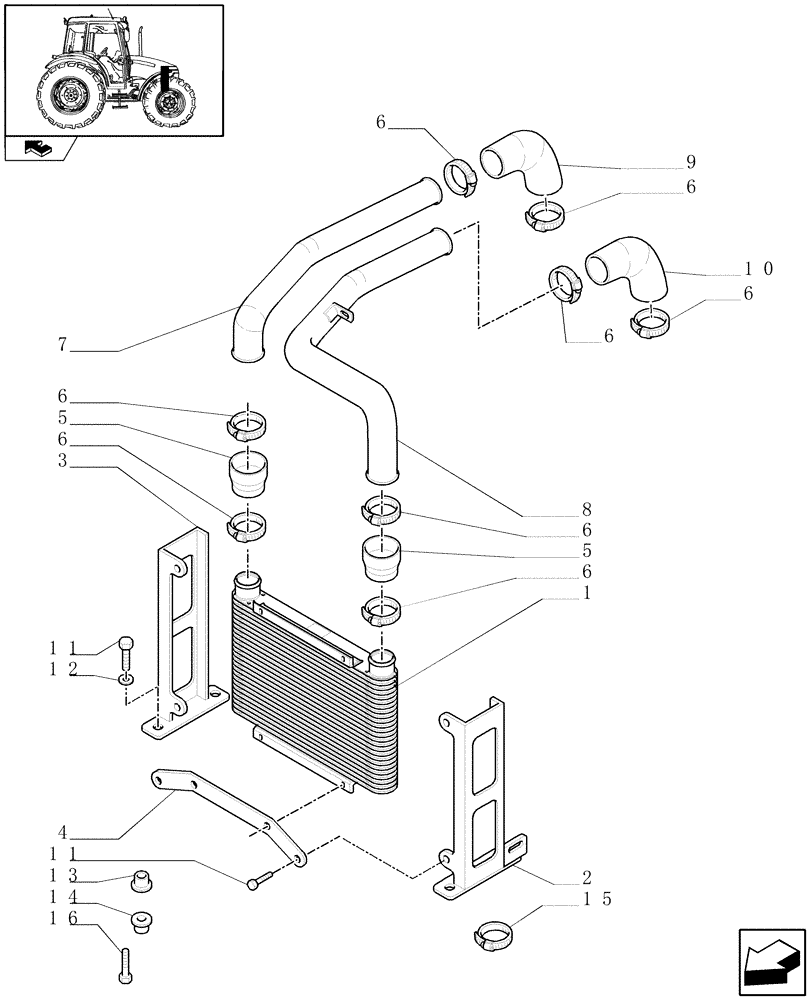

Запчасти Case IH FARMALL 60 (1.19.1[02]) - INTERCOOLER AND RELATED PARTS - C6750 (02) - ENGINE EQUIPMENT

1

87541604

HEATER

1шт.

2

87625111

SUPPORT

LH, Serial Range: -C6411

1шт.

2

84217225

SUPPORT

LH, Start Serial: D6411

1шт.

3

87625117

SUPPORT

RH, Serial Range: -C6411

1шт.

3

84217230

SUPPORT

RH, Start Serial: D6411

1шт.

4

84178331

BRACKET

2шт.

5

87609026

LARGE HOSE

HOSE,LARGE

2шт.

6

5085782

CLAMP

7шт.

7

84178332

PIPE

RH

1шт.

8

84178334

PIPE

LH

1шт.

9

87722669

INTAKE AIR HOSE,51.00 mm ID, 60.00 mm ID x 140.00 mm

1шт.

10

87722450

LARGE HOSE

HOSE,LARGE

1шт.

11

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

12

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

4шт.

13

47131590

SPACER,8.5mm ID x 26mm OD x 10mm Thk

4шт.

14

47131603

PAD,14mm ID x 26mm OD x 8mm Thk

4шт.

15

5098813

COLLAR,60mm - 80mm

1шт.

16

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.
