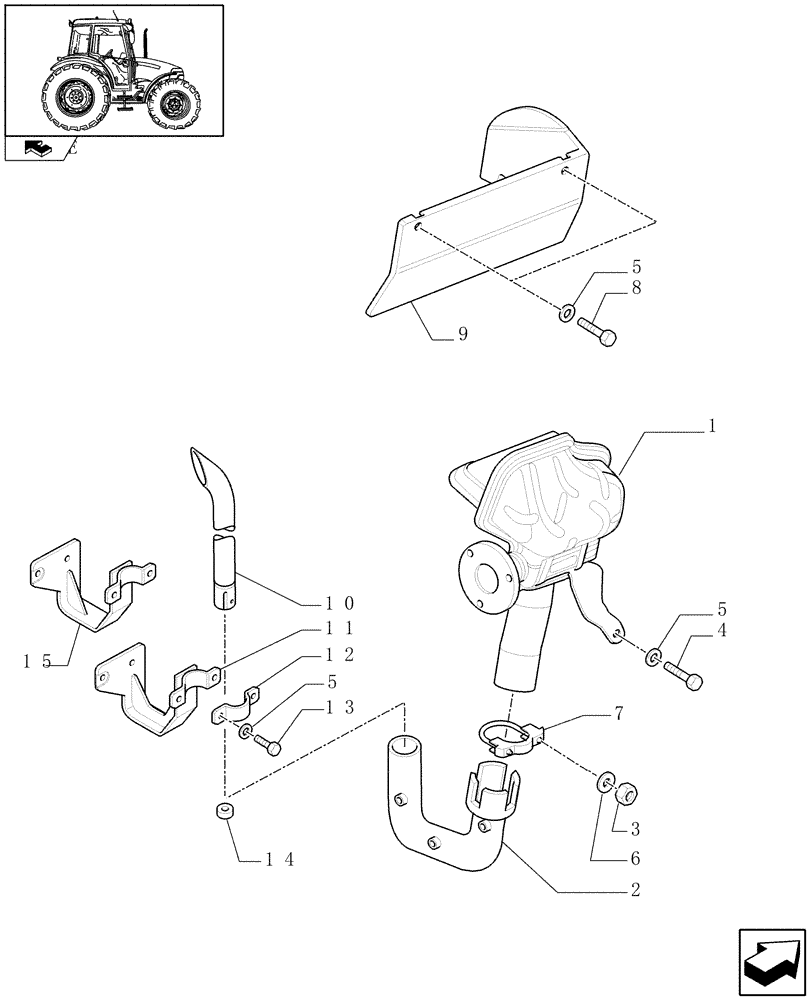

Запчасти Case IH FARMALL 60 (1.15.1) - MUFFLER - PIPE, COLLARS AND SUPPORT (02) - ENGINE EQUIPMENT

1

87392493

MUFFLER

1шт.

2

87721088

ELBOW

1шт.

3

12164714

NUT,M10 x 1.25, Cl 8

2шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

6

10571874

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

7шт.

7

5097158

COLLAR,60mm ID

D=60

1шт.

8

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

9

84183971

HEAT SHIELD

1шт.

10

5091091

EXHAUST SYSTEM PIPE

1шт.

11

87721078

SUPPORT

, Serial Range: -C6729

1шт.

12

84409237

COLLAR

1шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

14

87679104

SPACER

1шт.

14

87747747

RUBBER BUSHING

1шт.

15

84275664

SUPPORT

, Start Serial: D6729

1шт.
