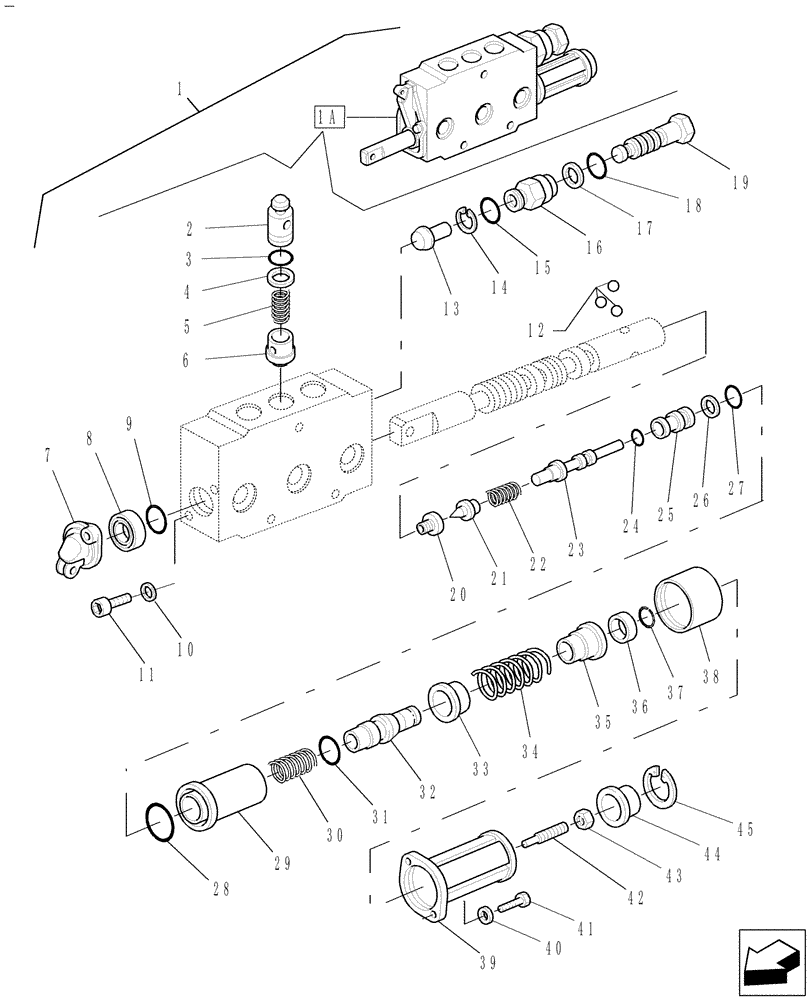

Запчасти Case IH FARMALL 60 (07.09) - 4 POSITION FLOAT & DETENT REAR REMOTE VALVE - 719940006 (07) - HYDRAULIC SYSTEM

1

719940006

DIA KIT, ADD PROD

Includes: Ref. 1A-45

1шт.

1a

87300358

DIA KIT, TRACTOR

1шт.

2

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

3

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

4

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

5

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

6

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

7

5116887

SUPPORT

1шт.

8

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

9

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

2шт.

12

20063420

BALL,3.96mm OD, Gr 100

3шт.

13

5136347

PIN,3.8mm OD x 15mm L

1шт.

14

11087871

CIRCLIP,M7

1шт.

15

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

16

5136346

BODY,7/8" - 14

1шт.

17

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

18

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

M6.75 ID x 1.78 Thk

1шт.

19

5136348

PIN,10mm OD x 37mm L

1шт.

20

5143554

PLUG,Slot, M7 x 0.75

1шт.

21

5143555

PIN,5.5mm OD x 12mm L

1шт.

22

5143556

SPRING,Compression, 9mm OD x 21.2mm L

1шт.

23

5143557

PIN,5.5mm OD x 52.5mm L

1шт.

24

5143558

O-RING,1.78mm Thk x 2.54mm ID

1шт.

25

5163363

BUSHING,5.5mm ID x 12mm OD x 16mm L

1шт.

26

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

1шт.

27

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

M8.73 ID x 1.78 Thk

1шт.

28

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

29

5179066

BUSHING,16mm ID x 27mm OD x 47mm L

1шт.

30

5163369

SPRING,Compression, 9mm OD x 38mm L

1шт.

31

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

32

5163365

PLUG,M14 x 1.5

1шт.

33

5143564

SPRING CUP,19mm ID x 27mm OD x 10.4mm L

1шт.

34

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

35

5143575

CUP,13mm ID x 21.5mm OD x 18mm Thk

1шт.

36

5143576

SPACER,13mm ID x 18.5mm OD x 5mm L

1шт.

37

5143577

SNAP RING,11.2mm D x 1.6mm Thk

1шт.

38

5143578

SPACER,28mm ID x 32mm OD x 29.5mm L

1шт.

39

5143566

FLANGE COVER CAP,28.8mm ID x 32mm OD x 60mm L

1шт.

40

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

41

5143621

HEX SOC SCREW,6.35mm OD x 48.5mm L

2шт.

42

5163362

ADJUSTMENT SCREW,Hdls Hex Skt, M3.5 x 10mm

1шт.

43

15896421

NUT,M5, Cl 10

1шт.

44

5143567

COVER

1шт.

45

13421276

SNAP RING,M28, Int

1шт.
