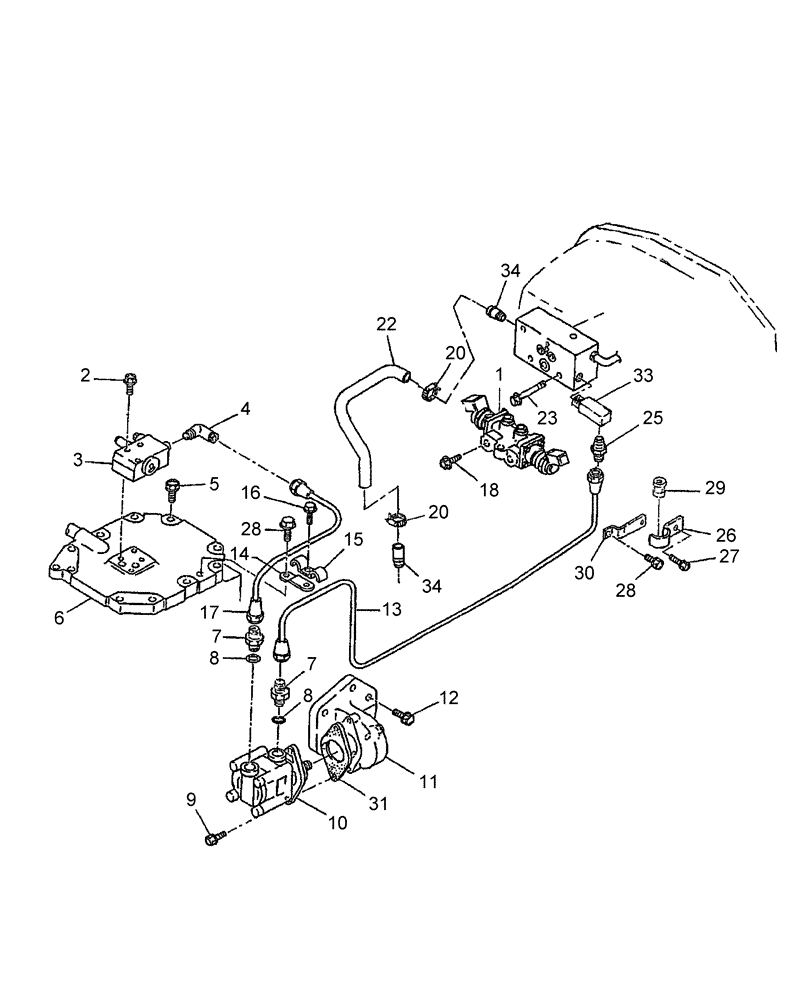

Запчасти Case IH FARMALL 60 (07.03) - EHSS & PTO PUMP & PIPING (07) - HYDRAULIC SYSTEM

1

SBA340014980

HYDRAULIC VALVE

Shuttle Valve Refer to Fig. 07.03.02 for Breakdown

1шт.

2

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

1шт.

3

SBA340016451

HYDRAULIC VALVE

PTO Refer to Fig. 07.05 for Breakdown

1шт.

4

SBA340671580

ADAPTER

1шт.

5

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

10шт.

6

SBA322213730

COVER

1шт.

7

SBA340671220

ADAPTER

1шт.

8

SBA052100140

O-RING

2шт.

9

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

4шт.

10

SBA340451161

PUMP

Oil, EHSS & PTO

1шт.

SBA340451161R

REMAN-HYD PUMP

FARMALL 55, FARMALL 60, BOTH W/ROPS

1шт.

SBA340451161C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

SBA322118360

CASE

1шт.

12

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

6шт.

13

SBA340550412

PIPE

Oil

1шт.

14

SBA399113440

CLAMP

1шт.

15

SBA399100630

CLAMP

2шт.

16

SBA011310630

BOLT

M6 x 30

1шт.

17

SBA340709700

PIPE

Oil

1шт.

18

SBA340293560

BOLT

3шт.

20

SBA398756260

BAND

2шт.

22

SBA340693480

HOSE

Oil

1шт.

23

SBA011510865

BOLT

M8 x 65

2шт.

24

SBA340016850

VALVE

Control EHSS Refer to Fig. 07.0301 for Breakdown

1шт.

25

SBA340674200

ADAPTER

1шт.

26

SBA399112260

CLAMP

1шт.

27

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

28

SBA011510816

BOLT

M8 x 16

2шт.

29

SBA198516390

RUBBER BUSHING

1шт.

30

SBA399113461

CLAMP

1шт.

31

SBA344990410

GASKET

1шт.

33

SBA340674210

ADAPTER

1шт.

34

SBA145986090

TUBE

2шт.
