Запчасти Case IH FARMALL 60 (01.05) - TIMING GEAR CASE (01) - ENGINE

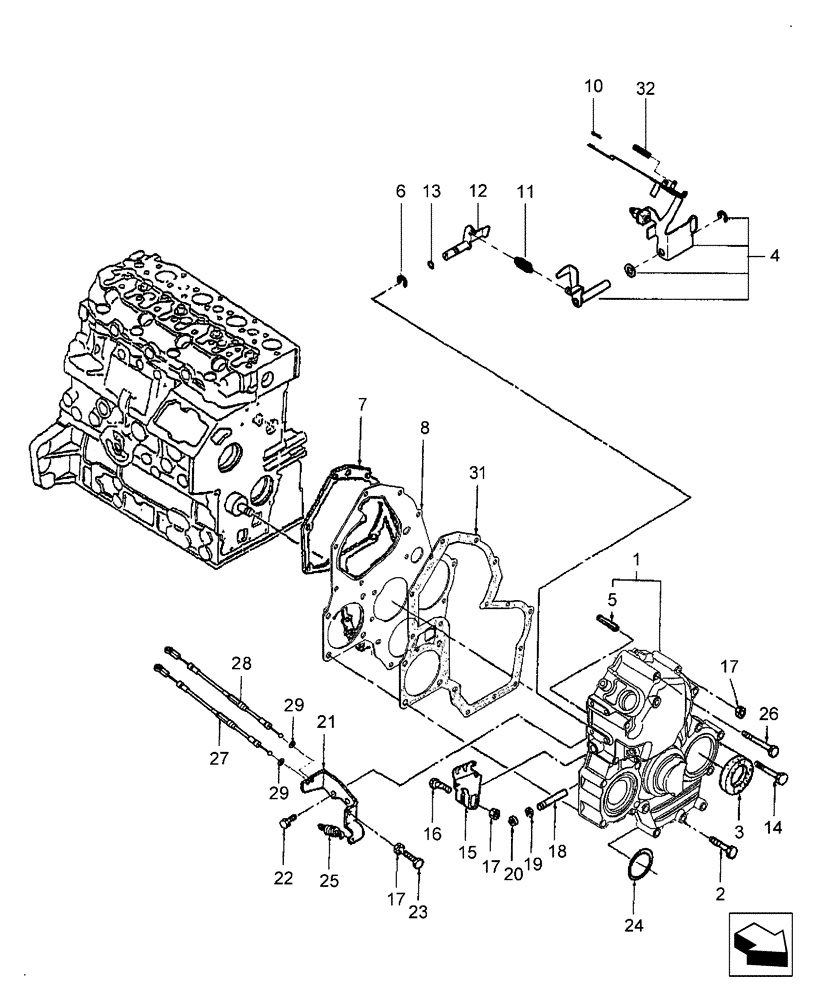

Схема запчастей Case IH FARMALL 60 - (01.05) - TIMING GEAR CASE (01) - ENGINE
29
7
28
11
6
24
12
13
19
3
20
5
10
22
17
17
17
21
1
18
2
8
26
29
32
4
23
25
15
14
27
16
31

Артикул

Название

Примечание

Количество

1

SBA165106680

CASING

Gear

1шт.

2

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

7шт.

3

SBA198636160

SEAL,M35 x 55 x 11

Oil

1шт.

4

SBA125046520

LEVER

Lever, Governor, FARMALL 55

1шт.

4

SBA125046710

GOVERNOR

Lever, Governor, FARMALL 60

1шт.

5

SBA030300414

PIN

Spring

1шт.

6

SBA036800008

SNAP RING

1шт.

7

SBA165996540

GASKET

1шт.

8

SBA165166600

PLATE

Front

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

SBA031100004

SPRING

1шт.

11

SBA198217220

SPRING

Main

1шт.

12

SBA125156170

ARM

1шт.

13

SBA052100070

O-RING

1шт.

14

SBA011310660

BOLT

5шт.

15

SBA125416090

LEVER

Governor

1шт.

16

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

17

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

18

SBA125116141

ROD

Governor

1шт.

19

SBA052109108

O-RING

1шт.

20

SBA036800005

SNAP RING

1шт.

21

SBA125976100

BRACKET

1шт.

22

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

23

SBA010109264

BOLT

1шт.

24

SBA052300600

O-RING,G60

1шт.

25

SBA398210070

SPRING

1шт.

26

SBA011310680

BOLT

M6 x 80

2шт.

27

SBA312070860

WIRE HARNESS

Foot Throttle Cable

1шт.

28

SBA312070851

WIRE HARNESS

Hand Throttle Cable

1шт.

29

SBA036800005

SNAP RING

2шт.

30

SBA398114451

RUBBER BUSHING

1шт.

31

SBA165996550

GASKET

1шт.

32

SBA198217500

SPRING

1шт.

Выбрано товаров: 33
