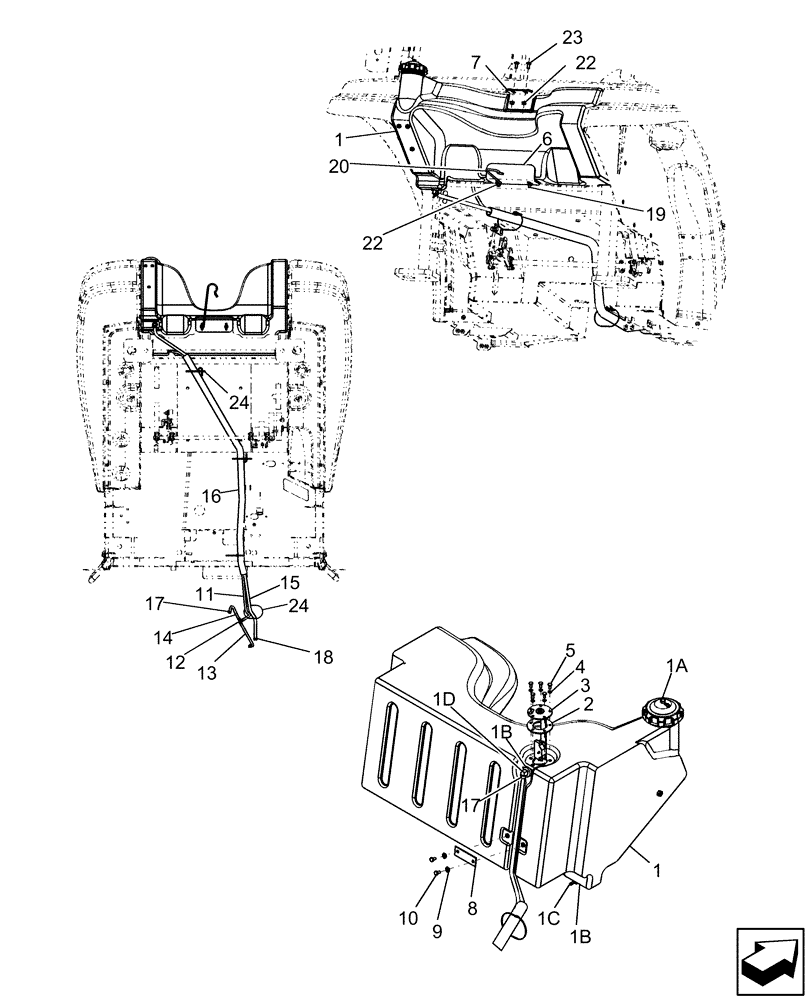

Запчасти Case IH FARMALL 60 (02.04) - FUEL TANK & RELATED PARTS (02) - ENGINE EQUIPMENT

1

87632871

FUEL TANK

Includes: Ref. 1B-1D Fuel Cap is Not Included

1шт.

1a

87700725

FILLER CAP

W/Gasket, Vented

1шт.

1b

86532842

BUSHING,9.2mm ID x 14.22mm OD x 16mm L

2шт.

1c

86532841

90 ELBOW,5/16" Hose Barb

1шт.

1d

86532840

90 ELBOW,4mm, Hosebarb

1шт.

2

48751

GASKET,2.38mm Thk

Fuel Sender

1шт.

3

87390055

SENDER UNIT

Fuel Sender

1шт.

4

86509828

LOCK WASHER,M5

5шт.

5

80043982

SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8

5шт.

6

87388473

BRACKET

Fuel Tank Clamp

1шт.

7

87677652

BRACKET

PLATE, RETAINING

1шт.

8

86574760

PLATE

Hold Down

1шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

10

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

11

86400973

HOSE,4.76 mm ID x 2205.00 mm, SAE J30R7

Fuel Vent

1шт.

12

86400361

HYD CONNECTOR

1шт.

13

87621202

FUEL HOSE,4.76 mm ID x 190.00 mm, SAE 30R7

Fuel Vent

1шт.

14

86400972

HOSE,4.76 mm ID x 125.00 mm, SAE J30R7

Fuel Vent

1шт.

15

87676685

FUEL HOSE,7.94mm ID x 2080mm L, SAE 30R7

Fuel Filter In

1шт.

16

NSS

NOT SOLD SEPARAT

Conviluted Tubing, Slit

1шт.

17

86530730

HOSE CLAMP,10.29mm - 12.32mm

6шт.

18

86400352

CLAMP

Hose

2шт.

19

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

20

86562358

HOLDER

Top Link

1шт.

21

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

22

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

23

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

24

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

25

87362723

HARNESS

Fuel Sender Jumper

1шт.

Not Illustrated

1шт.
