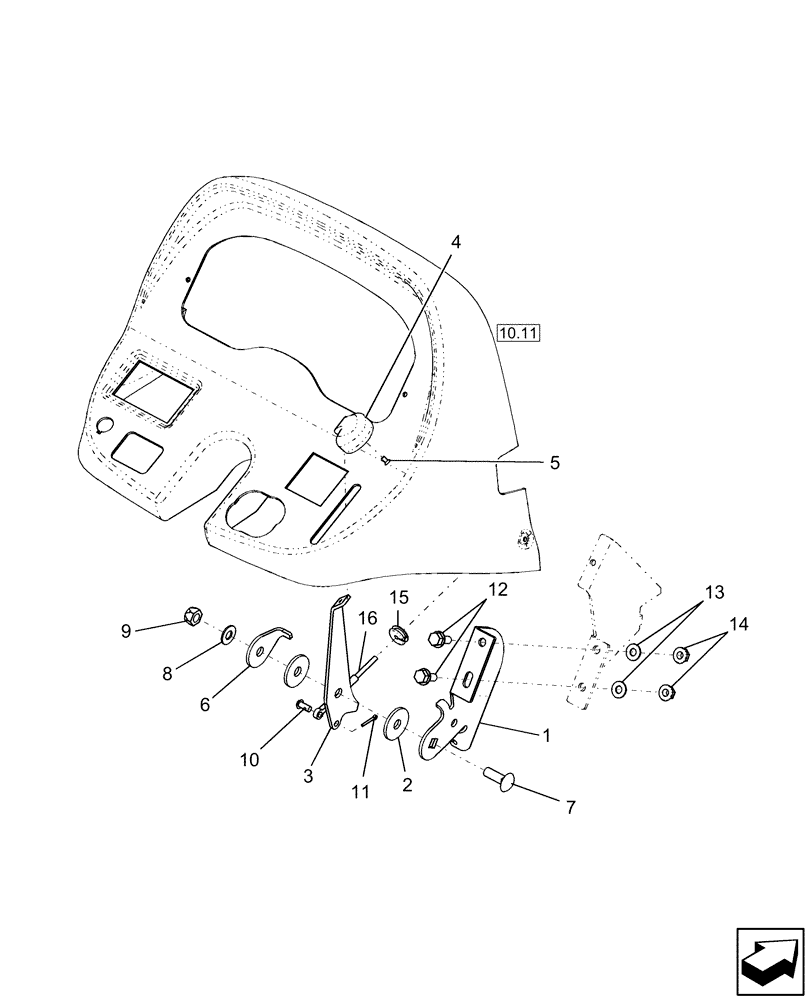

Запчасти Case IH FARMALL 60 (10.11.03) - HAND THROTTLE ASSEMBLY (10) - OPERATORS PLATFORM/CAB

1

86567765

BRACKET

Hand Throttle

1шт.

2

86504705

WASHER,M11.1 x 37.9 x 3.3 Thk, Plastic

2шт.

3

87676651

SPEED CHANGE LEVER

Throttle

1шт.

4

82034589

KNOB

Throttle

1шт.

5

9844207

SCREW,Phillips Drive, Oval HD, M4 x 8mm, Cl 4.8

1шт.

6

86573736

WASHER

1шт.

7

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

10

86534989

RIVET,Button, 6mm OD x 14mm L

Rivet

1шт.

11

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

15

87373039

GROMMET

Rubber

1шт.

16

SBA312070220

FLEXIBLE CABLE

Throttle, Hand

1шт.

17

SBA398114451

RUBBER BUSHING

Hand Throttle

1шт.

Not Illustrated

1шт.
