Запчасти Case IH FARMALL 60 (07.12) - REAR REMOTE #3 SELF CENTERING CONTROL - 719937016 (07) - HYDRAULIC SYSTEM

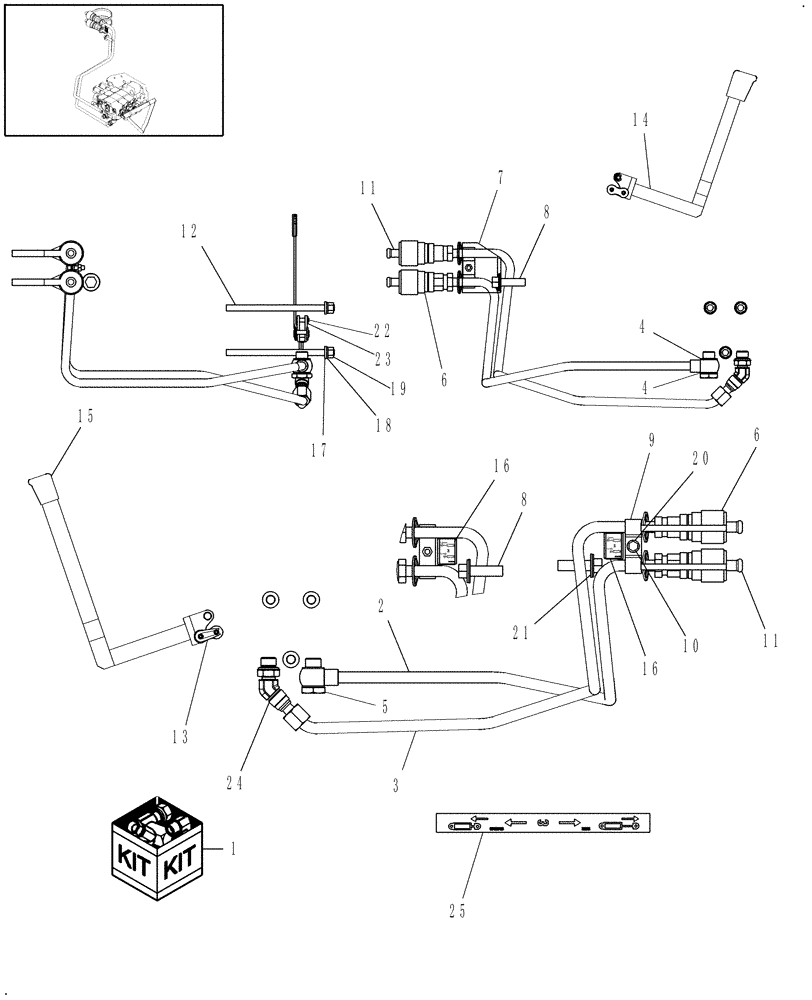

Схема запчастей Case IH FARMALL 60 - (07.12) - REAR REMOTE #3 SELF CENTERING CONTROL - 719937016 (07) - HYDRAULIC SYSTEM
3
24
8
25
13
17
1
4
19
4
11
16
20
22
18
8
16
6
9
10
14
23
12
2
6
7
5
15
21
11

Артикул

Название

Примечание

Количество

1

719937016

DIA KIT, ADD PROD

Rear Remote #3 Self Centering Control Includes: Ref. 2-25

1шт.

2

86404883

TUBE,12.70 mm OD

Valve 3, Lower

1шт.

3

86404884

TUBE,12.70 mm OD

Valve 3, Raise

1шт.

4

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

M18 x 1.5

2шт.

5

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5

1шт.

6

256231

COUPLING, QUICK, FEM

Female. Male Coupler is 9801618

2шт.

7

87300576

BRACKET

Coupler

1шт.

8

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

9

86524859

CLAMP

Tube Holder

1шт.

10

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

11

5186723

DUST CAP,24mm, Black

Dust, 1/2" Coupler

2шт.

12

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3/8"

3шт.

13

5116896

LINK,19.05mm Pitch

1шт.

14

87301333

LEVER

Lever 3 or 4 Position Rear Remote

1шт.

15

86405812

KNOB

Lever

1шт.

16

87301390

DECAL

Coupler

2шт.

17

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

3шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

19

86509310

NUT,3/8" - 24, Gr 5

3шт.

20

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

Bracket Mount

1шт.

22

5172456

PIN,6mm OD x 20mm L

Lever Connection

1шт.

23

11087776

CIRCLIP,Ext., M6, BLO

1шт.

24

87327028

45 ELBOW

Elbow 45 Degree

1шт.

25

86405759

DECAL

Pod Slot

1шт.

Выбрано товаров: 25
