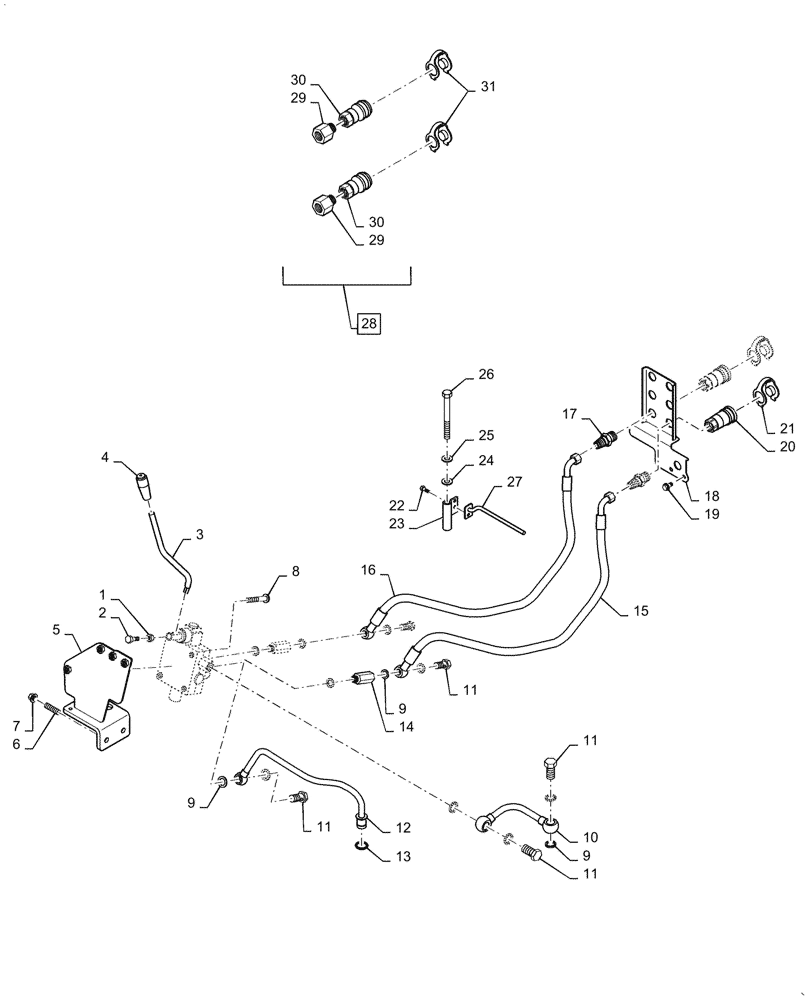

Запчасти Case IH FARMALL 55C (35.204.010) - REMOTE CONTROL VALVE, ROPS (35) - HYDRAULIC SYSTEMS

1

MT40028769

NUT,Hex, M10 x 1.5

1шт.

2

MT40029362

BOLT,Hex, M10 x 1.5 x 25mm

1шт.

3

MT40277012

LEVER

Remote Valve

1шт.

4

MT40228432

GRIP

Grip Aux Lever, Green

2шт.

4

MT40008403

GRIP

Grip Aux Lever, Black

2шт.

5

MT40051027

BRACKET

Remote Control Valve

1шт.

6

MT40029017

STUD,M10 x 1.25 x25mm

2шт.

7

MT40029079

FLANGE NUT,M10 x 1.25

2шт.

8

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

2шт.

9

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

Bonded

11шт.

10

MT40036294

PIPE

Pressure Rear

1шт.

11

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

5шт.

12

MT40036315

PIPE

Remote Control Valve Drain

1шт.

13

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

1шт.

14

MT40010252

HYD CONNECTOR,3/8” x 22mm ID x 11x60mm L

Union

1шт.

15

MT40296427

HOSE

Remote Control LH

1шт.

16

MT40296428

HOSE

Remote Control RH

1шт.

17

MT40296434

JOINT

2шт.

18

MT40296433

BRACKET

Remote Hose

1шт.

19

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

20

MT40230238

COUPLING, QUICK, FEM,1/2"

2шт.

21

MT40230241

DUST CAP,1/2"

Coupler, Green

2шт.

21

MT40234922

DUST CAP

Coupler, Black

2шт.

22

MT40028966

BOLT,Hex, M6 x 1 x 20mm

1шт.

23

MT40296435

BRACKET

Hose Clamp

1шт.

24

MT40028159

WASHER,13mm ID x 21mm OD x 2.50mm Thk

Plain

1шт.

25

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

1шт.

26

MT40029442

BOLT,Hex, M12 x 1.75 x 110mm

1шт.

27

MT40296436

HOSE CLAMP

Remote Hose

1шт.

28

MT40233020

COUPLING

Assy Incl 29, 30

2шт.

29

MT40009174

ADAPTER,1/2" - 3/8"

1шт.

30

MT40233022

COUPLING,3/8"

1шт.

31

MT40233025

DUST CAP,3/8"

Coupler

2шт.
