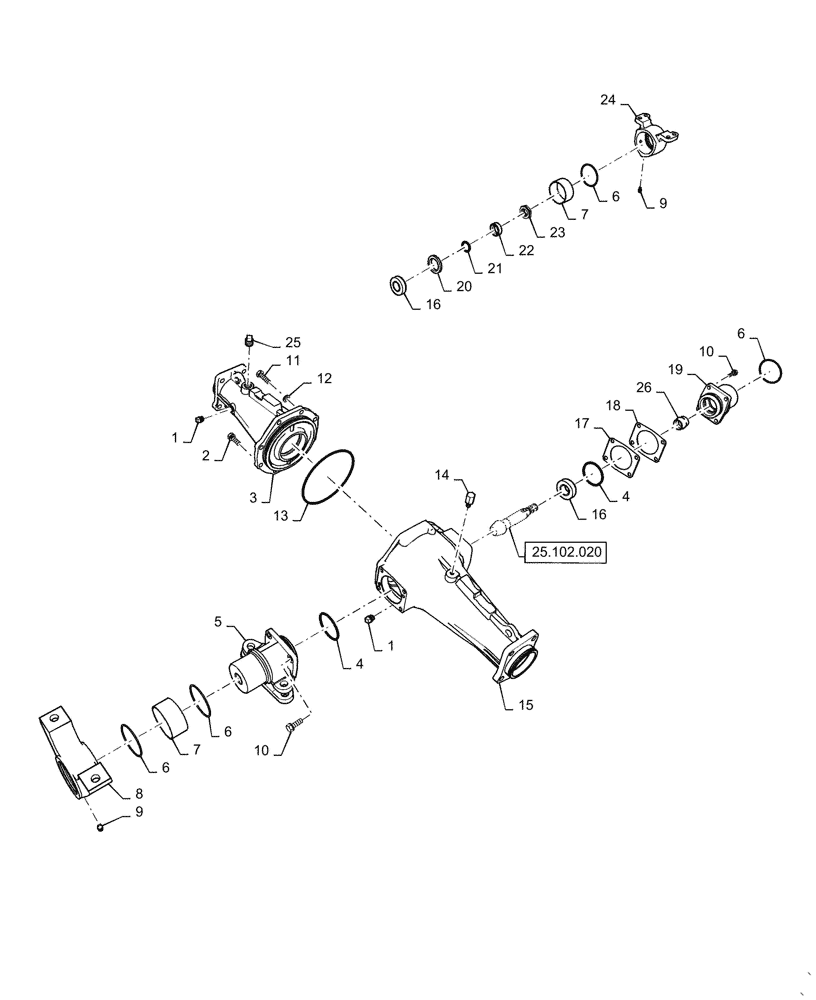

Запчасти Case IH FARMALL 55C (25.102.010) - FRONT AXLE, DRIVE, PINION (25) - FRONT AXLE SYSTEM

1

MT40009626

PLUG,Tpr, 16.66mm OD x 21mm L

6шт.

2

MT40028939

BOLT,Hex, M12 x 1.75 x 35mm

7шт.

3

MT40304932

HOUSING

Center Case

1шт.

4

MT40029228

O-RING,74.40mm Dia x 3.10mm

2шт.

5

MT40008997

HOLDER

Front Pivot

1шт.

6

MT40029229

O-RING,79.40mm Dia x 3.10mm Thk

4шт.

7

MT40010126

BUSHING,80mm ID x 85mm OD x 40mm

2шт.

8

MT40009414

BRACKET

F/Axle Front

1шт.

9

MT40009516

NIPPLE,M10 x 1/8"

Grease

2шт.

10

MT40028949

BOLT,Hex, M10 x 1.25 x 30mm

8шт.

11

MT40009922

BOLT,M12 x 1.75 x 40mm L

Reamer

1шт.

12

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

1шт.

13

MT40029234

O-RING,174.30mm ID x 5.7mm Thk

1шт.

14

MT40013036

BREATHER

Air

1шт.

15

MT40008931

FRONT AXLE

Center Case

1шт.

16

MT40007830

TAPERED BEARING,30mm ID x 62mm OD x 21.25mm

2шт.

17

MT40012000

SHIM,80.5mm ID x .07mm L

1шт.

18

MT40012001

SHIM,80.5mm ID x .2mm L

1шт.

19

MT40010334

CASE

Bearing

1шт.

20

MT40007426

SEAL,45mm ID x 62mm OD, 9mm Thk

Oil

1шт.

21

MT40029212

O-RING,29.70mm OD x 3.50mm Thk

1шт.

22

MT40009698

BUSHING,35mm ID x 45mm OD x 15mm

Seal

1шт.

23

MT40009935

NUT,Hex, M30 x 1.5

1шт.

24

MT40009435

BRACKET

F/Axle Rear

1шт.

25

MT40009645

PLUG,Tpr, 20.95mm OD x 25mm L

1шт.

26

MT40232610

SPACER

1шт.
