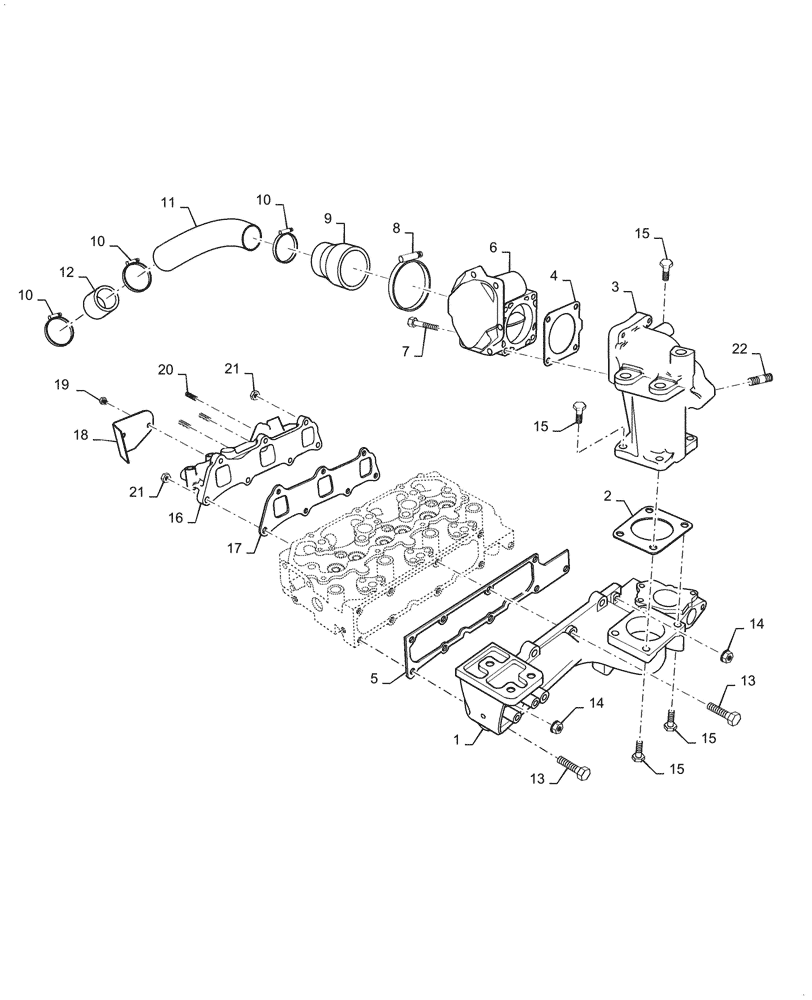

Запчасти Case IH FARMALL 55C (10.254.010) - INTAKE & EXHAUST MANIFOLD (10) - ENGINE

1

MT40273906

INLET MANIFOLD

1шт.

2

MT40265765

GASKET

Adaptor

1шт.

3

MT40265757

MANIFOLD

Adaptor

1шт.

4

MT40265766

GASKET

ACV

1шт.

5

MT40265771

GASKET

Intake

1шт.

6

MT40265758

CHECK VALVE

1шт.

7

MT40028917

BOLT,Hex, M6 x 1 x 50mm

4шт.

8

MT40265763

HOSE CLAMP

1шт.

9

MT40265761

HOSE

ACV Inlet

1шт.

10

MT40265764

HOSE CLAMP

3шт.

11

MT40265772

PIPE

ACV

1шт.

12

MT40265762

HOSE

T/C Outlet

1шт.

13

MT40268193

FLANGE BOLT,Hex, M8 x 1.25 x 30mm

7шт.

14

MT40029075

FLANGE NUT,Hex, M8 x 1.25

2шт.

15

MT40268192

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

4шт.

16

MT40268003

EXHAUST MANIFOLD

1шт.

17

MT40265787

GASKET

Exhaust

1шт.

18

MT40288672

HEAT SHIELD

1шт.

19

MT40268189

FLANGE BOLT,Hex, M8 x 1.25 x 12mm

2шт.

20

MT40315656

BOLT,M10 x 1.5 x 25mm

3шт.

21

MT40315657

LOCK NUT

6шт.

22

MT40092298

BOLT,M8 x 1.25 x 20mm

2шт.
