(90.160.040) - TRIM PANEL, COVER, MECHANICAL TRANSMISSION

Запчасти Case IH FARMALL 55C (90.160.040) - TRIM PANEL, COVER, MECHANICAL TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

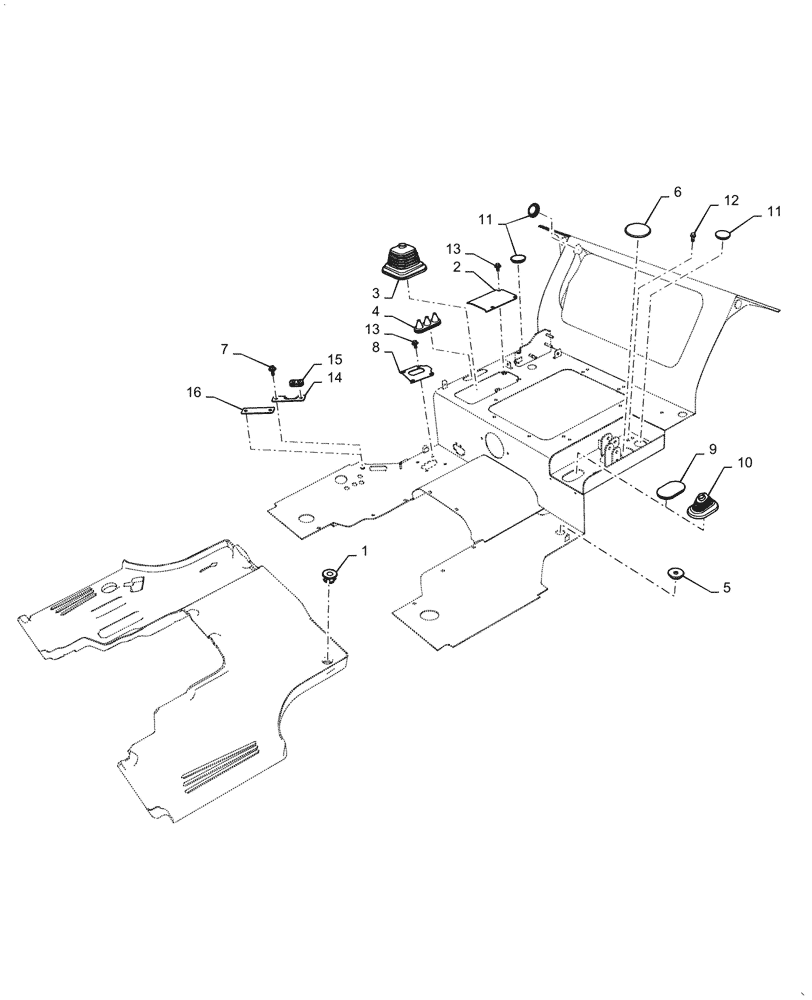

Схема запчастей Case IH FARMALL 55C - (90.160.040) - TRIM PANEL, COVER, MECHANICAL TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
15
9
14
3
16
13
4
5
7
8
6
10
13
1
2
11
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40032871

GUIDE

1шт.

2

MT40257480

COVER

1шт.

3

MT40254277

COVER

1шт.

4

MT40288522

GROMMET

1шт.

5

MT40278281

GUIDE,2.5mm Thk

1шт.

6

MT40277996

PLUG

1шт.

7

MT40094895

BOLT,Hex, M6 x 1 x 16mm

2шт.

8

MT40254267

COVER

1шт.

9

MT40278918

COVER

1шт.

10

MT40254927

BOOT

1шт.

11

MT40007363

GROMMET,38mm OD x 2.5mm Thk

3шт.

12

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

13

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

14

MT40254851

BRACKET

1шт.

15

MT40030724

GROMMET

2шт.

16

MT40267707

COVER

1шт.
