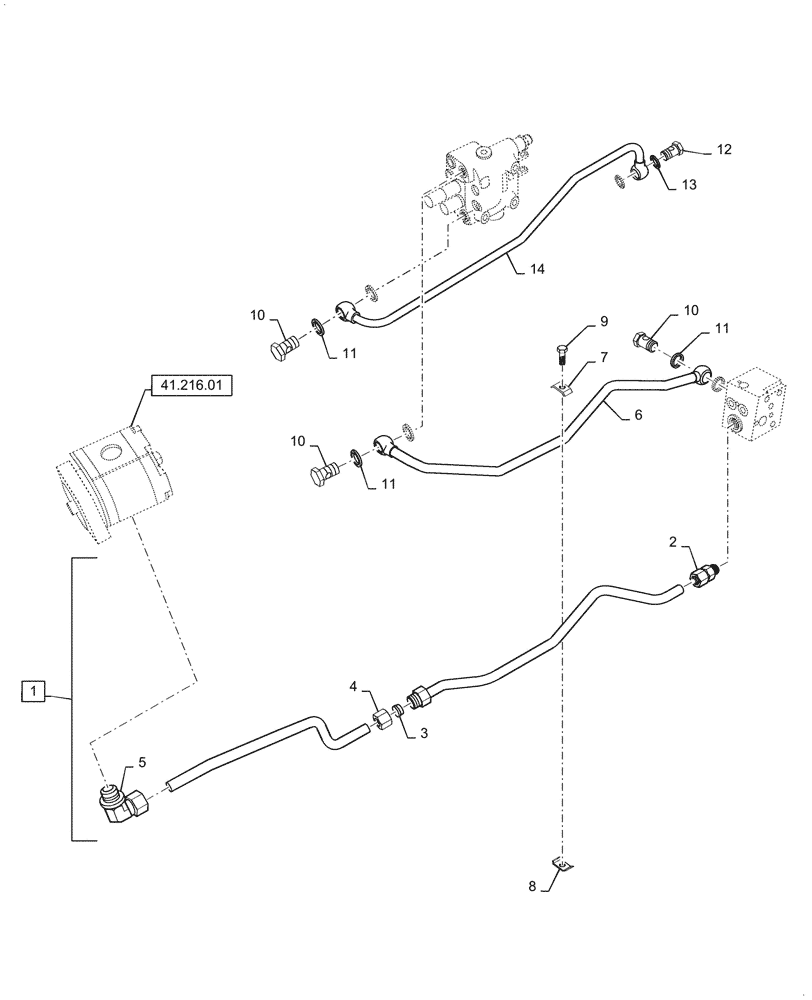

Запчасти Case IH FARMALL 55C (35.300.010) - HYDRAULIC LINES, HYDROSTATIC TRANSMISSION (35) - HYDRAULIC SYSTEMS

1

MT40287910

PIPE

Assy Incl 2-5

1шт.

2

MT40009907

JOINT,15mm ID x 1/2"

1шт.

3

MT40269071

SLEEVE

BS15

1шт.

4

MT40269072

NUT

BN15

1шт.

5

MT40010275

JOINT,15mm ID x 1/2"

1шт.

6

MT40280066

PIPE,15mm OD x 1.5mm Thk

1шт.

7

MT40012306

CLAMP,2.3mm Thk

1шт.

8

MT40012307

PIPE CLAMP,2.3mm Thk

1шт.

9

MT40028968

BOLT,Hex, M6 x 1 x 30mm

1шт.

10

MT40010250

BOLT,Union 1/2" x 36mm L

3шт.

11

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

6шт.

12

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

1шт.

13

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

2шт.

14

MT40280065

PIPE,83mm ID x .8mm Thk

Drain

1шт.
