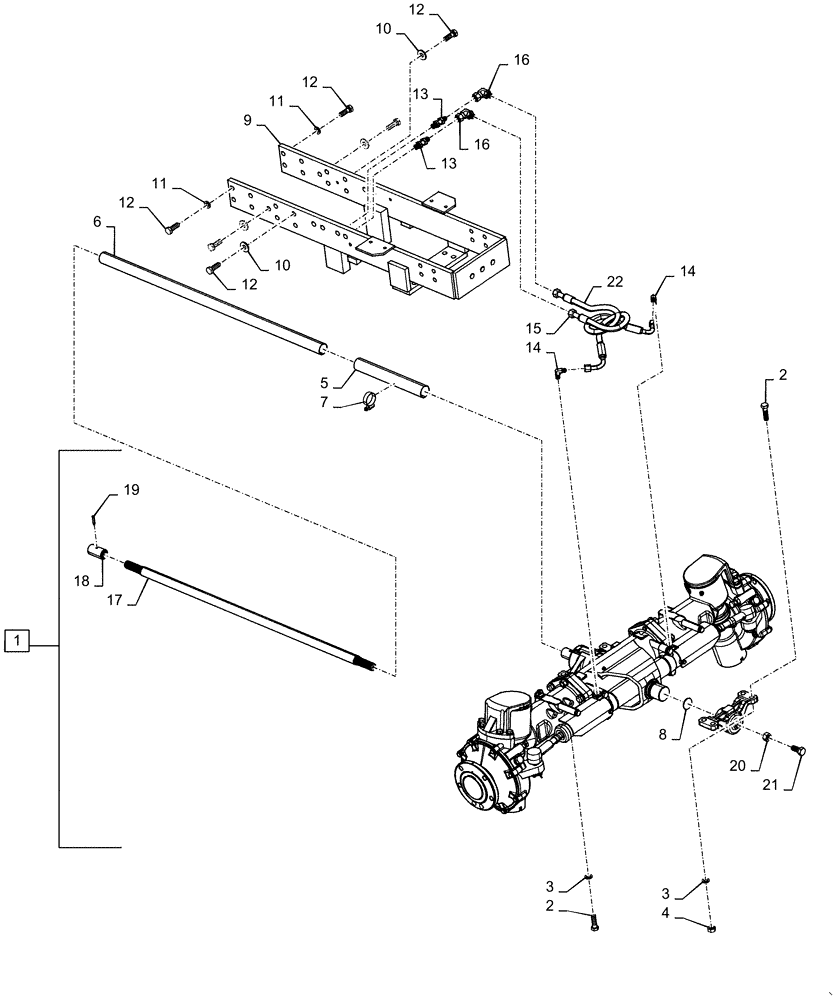

Запчасти Case IH FARMALL 55C (25.100.AA) - FRONT AXLE (25) - FRONT AXLE SYSTEM

1

47878087

AXLE

4WD, Incl 17-21, & 8

1шт.

2

87316174

BOLT,Hex, M14 x 50mm, Cl 10.9

8шт.

3

140030

LOCK WASHER,M14

8шт.

4

86508817

NUT,M14, Cl 8

4шт.

5

47487318

SHIELD

MFD, Shaft Front

1шт.

6

47487319

SHIELD

MFD, Shaft Rear

1шт.

7

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

8

47546705

PLATE

1шт.

9

47639959

FRAME

Front Support

1шт.

10

86400425

WASHER

Conical

10шт.

11

140030

LOCK WASHER,M14

8шт.

12

86526912

BOLT,Hex, M14 x 1.5 x 40mm, Cl 10.9, Full Thd

18шт.

13

86400264

FITTING,9/16"-18 x M66.4 L

2шт.

14

47530258

ELBOW

2шт.

15

47765384

HYDRAULIC HOSE

Front Axle

1шт.

16

47530258

ELBOW

2шт.

17

47481933

SHAFT

Drive, MFD

1шт.

18

47616534

COUPLING

Splined, Female, 33mm

2шт.

19

14604270

LOCK PIN,M6 x 32, Slotted

2шт.

20

331192

NUT,M16 x 1.5, Cl 8

1шт.

21

11376221

BOLT,Hex, M16 x 1.5 x 35, 8.8, Full Thd

1шт.

22

47765387

HYDRAULIC HOSE

1шт.
