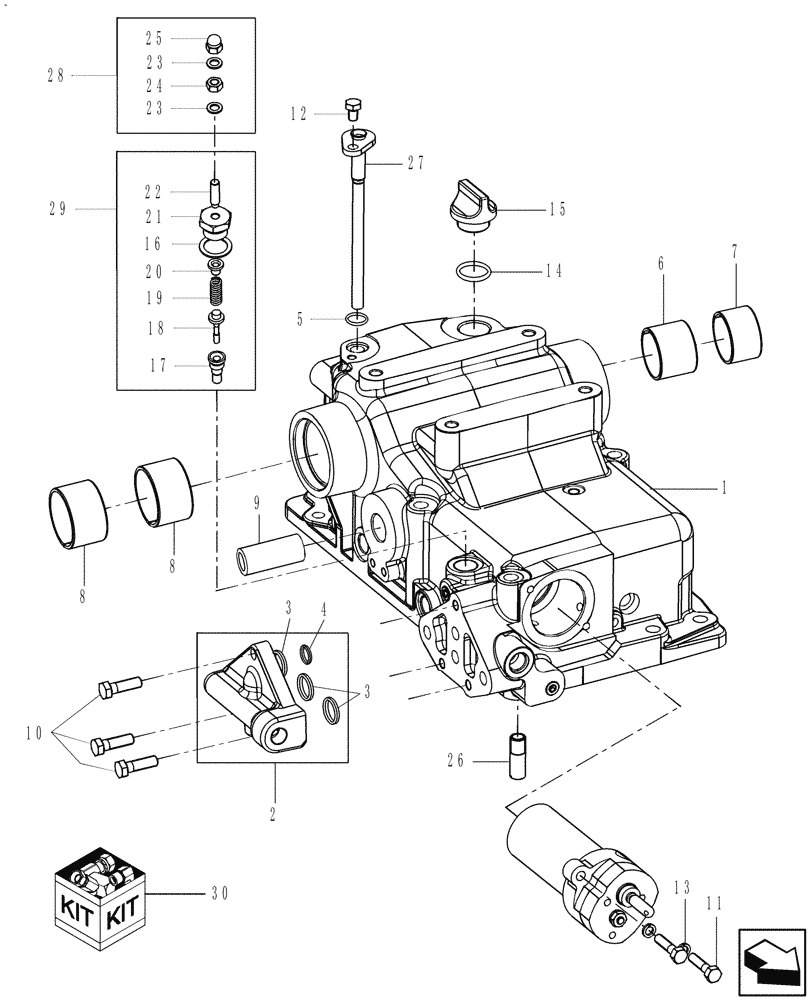

Запчасти Case IH FARMALL 55C (21.504.AK[07]) - LIFT HOUSING ASSEMBLY (21) - TRANSMISSION

1

84146969

COVER

Housing, Includes Items 2 - 31

1шт.

2

84188504

FLANGE

Closing Incl 3, 4

1шт.

3

48148112

Seal

3шт.

4

48148111

Seal

1шт.

5

48148109

O-Ring

1шт.

6

84188506

BUSHING

55 x 40

1шт.

7

84188507

BUSHING

55 x 30

1шт.

8

84188509

BUSHING

60 x 40

2шт.

9

84188510

BUSHING

1шт.

10

86631589

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5, Full Thd

3шт.

11

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

12

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

13

87016619

LOCK WASHER,M8

2шт.

14

48148110

Seal

1шт.

15

84188512

FILLER CAP

1шт.

16

84251154

COPPER WASHER

1шт.

17

84352998

VALVE SEAT

1шт.

18

84353002

PIN

Valve

1шт.

19

84188574

SPRING

1шт.

20

84353003

SPRING

Bushing

1шт.

21

84251151

PLUG

1шт.

22

84251153

SCREW

M8x30

1шт.

23

84352997

WASHER

Copper

2шт.

24

829-4408

NUT,Thin, M8 x 1.25, Cl 05

1шт.

25

84353421

NUT

Nut, M8 x 1.25

1шт.

26

84188516

HYD TUBE,99 mm L

1шт.

27

84188517

HYD TUBE,99 mm L

1шт.

28

84188514

KIT

Washer/Nut Incl 23 - 25

1шт.

29

84188513

KIT

Relief Valve Incl 16 - 22

1шт.

30

84188505

SEAL KIT

Incl 3,4,5,14 & 5, 13, 15 on 21.504.AK & 11, 12 on Fig. 03.31 21.504.AK

1шт.

31

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

Pipe, 1/8 Fits in Hole to the Right of the Cylinder

1шт.

Not Illustrated

1шт.
