Запчасти Case IH FARMALL 55C (55.302.AG) - BATTERY - TRAY & CABLES (55) - ELECTRICAL SYSTEMS

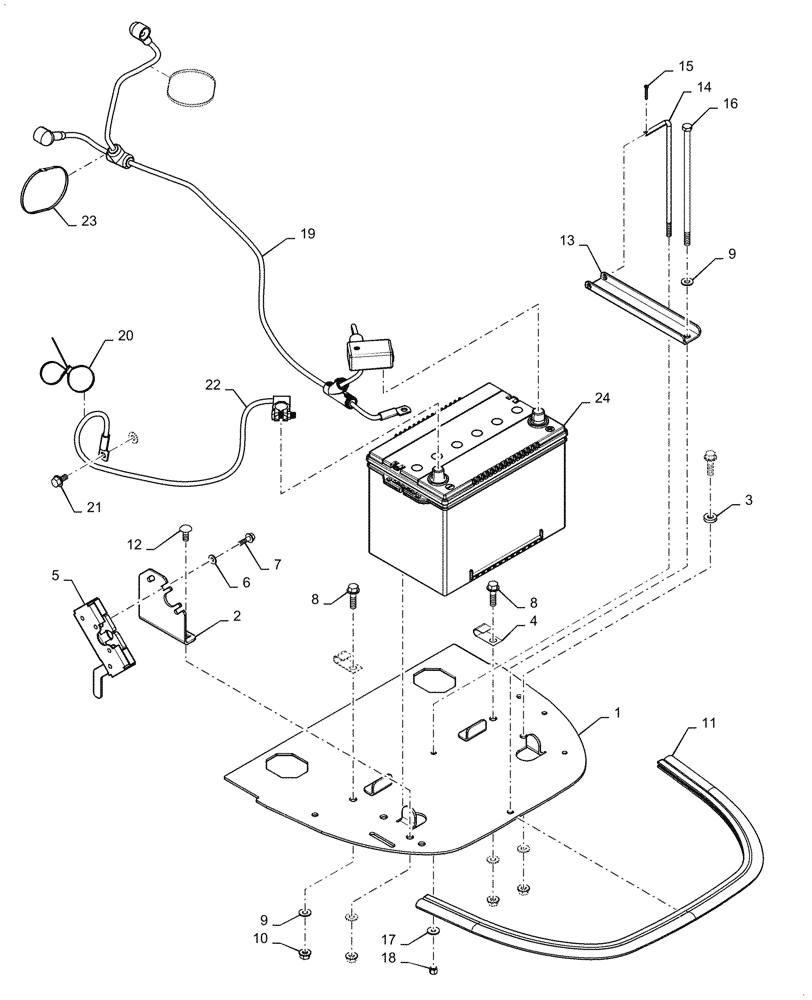

Схема запчастей Case IH FARMALL 55C - (55.302.AG) - BATTERY - TRAY & CABLES (55) - ELECTRICAL SYSTEMS
21
24
18
9
1
15
5
17
14
20
11
8
9
3
23
16
13
10
4
6
8
2
7
22
19
12

Артикул

Название

Примечание

Количество

1

47712521

PLATE

Battery

1шт.

2

87301002

BRACKET

Hood Latch

1шт.

3

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

1шт.

4

134579

WIRE CLAMP,J

2шт.

5

86403766

BRACKET

Hood Latch

1шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

7

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

8

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

11

47717633

SEAL

Battery Plate

1шт.

12

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

13

47627793

CHANNEL

Battery Hold Down

1шт.

14

47598243

ROD

Battery Hold Down

1шт.

15

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

16

87695409

BOLT,Hex, M8 x 210mm, Cl 8.8

1шт.

17

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

18

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

1шт.

19

47808713

CABLE

Battery, Negative

1шт.

20

82012869

CABLE TIE,300mm L, Nylon, Black

Double

1шт.

21

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

22

47776759

POS BATTERY CABLE

1шт.

23

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

24

B48MFW

WET BATTERY

12V, 74A, 680CCA

1шт.

Выбрано товаров: 24
