Запчасти Case IH FARMALL 55C (55.100.DP) - WIRE HARNESS (55) - ELECTRICAL SYSTEMS

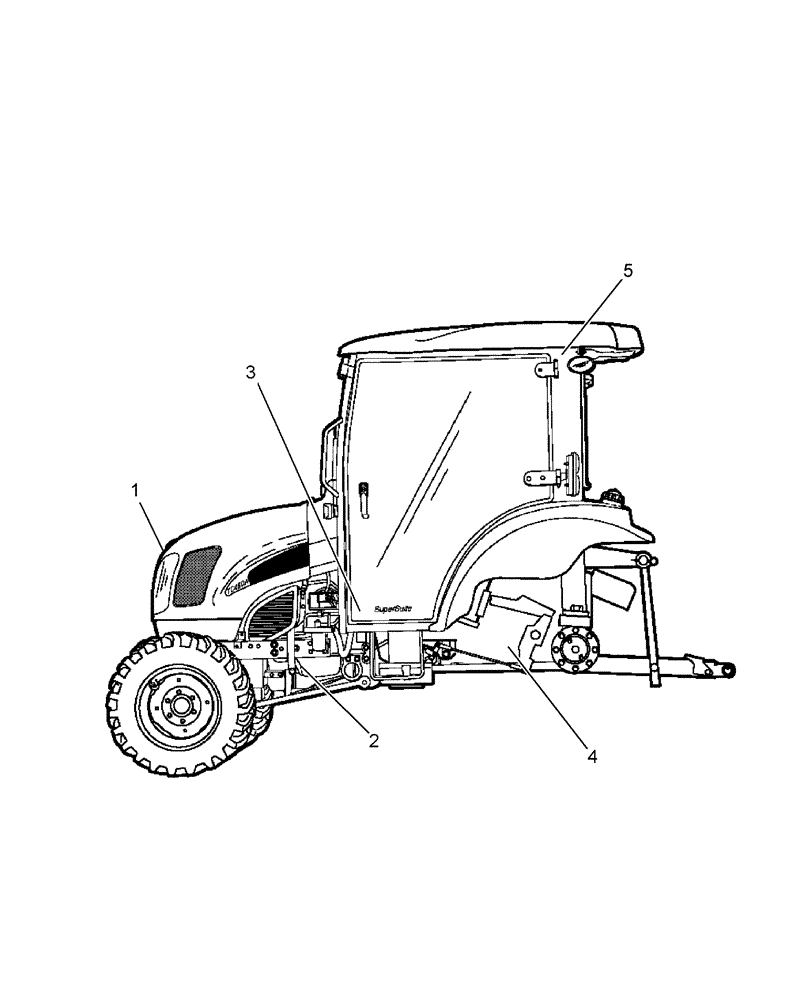

Схема запчастей Case IH FARMALL 55C - (55.100.DP) - WIRE HARNESS (55) - ELECTRICAL SYSTEMS
3
4
2
1
5

Артикул

Название

Примечание

Количество

1

47775831

WIRE HARNESS

Hood/ Headlight

1шт.

2

84299320

WIRE HARNESS

Front Main Includes Engine Area, Starter, Alternator, Glow Plugs, Fuel Solenoid

1шт.

3

47775860

WIRE HARNESS

Panel Includes Relay & Fuse

1шт.

4

84299321

WIRE HARNESS

Rear Chassis

1шт.

Will Incl 773464

1шт.

4a

228174A1

DIODE

Not Illustrated

1шт.

5

87585477

WIRE HARNESS

Cab

1шт.

6

87362723

HARNESS

Fuel Sender Jumper

1шт.

Not Illustrated

1шт.

7

84172907

BRACKET

Diagnostics

1шт.

Not Illustrated

1шт.

8

87522223

JUNCTION BLOCK

Panel Mounted Power

2шт.

Not Illustrated

1шт.

9

87522476

RELAY

70 AMP Power Relay

1шт.

Not Illustrated

1шт.

10

84498468

WIRE HARNESS

Chassis, w/ CAB

1шт.

Выбрано товаров: 16
