(55.015.AA) - ELECTRONIC CONTROL UNIT, ENGINE

Запчасти Case IH FARMALL 55C (55.015.AA) - ELECTRONIC CONTROL UNIT, ENGINE (55) - ELECTRICAL SYSTEMS

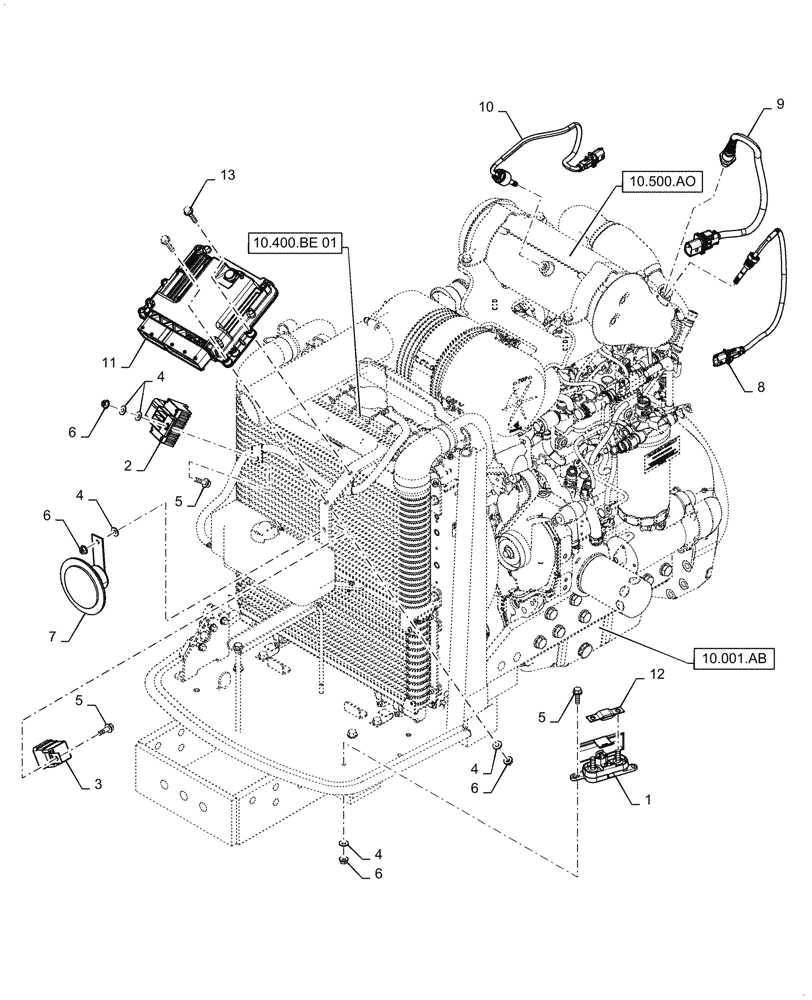

Схема запчастей Case IH FARMALL 55C - (55.015.AA) - ELECTRONIC CONTROL UNIT, ENGINE (55) - ELECTRICAL SYSTEMS
10.001.ab
6
9
5
11
8
4
6
12
13
6
5
4
5
4
10
1
2
4
7
6
3
10.400.be 01
10.500.ao
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

440038A1

JUNCTION BLOCK

Fuse

1шт.

2

84357520

ECU

Glow Plug

1шт.

3

293256A2

RELAY,12V

Glow Plug

1шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

10шт.

5

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

8шт.

7

9821300

HORN

1шт.

8

84394768

SENSOR

Exhaust Temperature

1шт.

9

84286040

SENSOR

Oxygen, Heated

1шт.

10

47406556

TEMPERATURE SENDER

Exhaust Gas Temperature

1шт.

11

84472188

ECU

Engine Control

1шт.

12

440572A1

FUSE,100A, Megaval

1шт.

13

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

4шт.
