(41.206.AA) - POWER STEERING MOTOR

Запчасти Case IH FARMALL 55C (41.206.AA) - POWER STEERING MOTOR (41) - STEERING

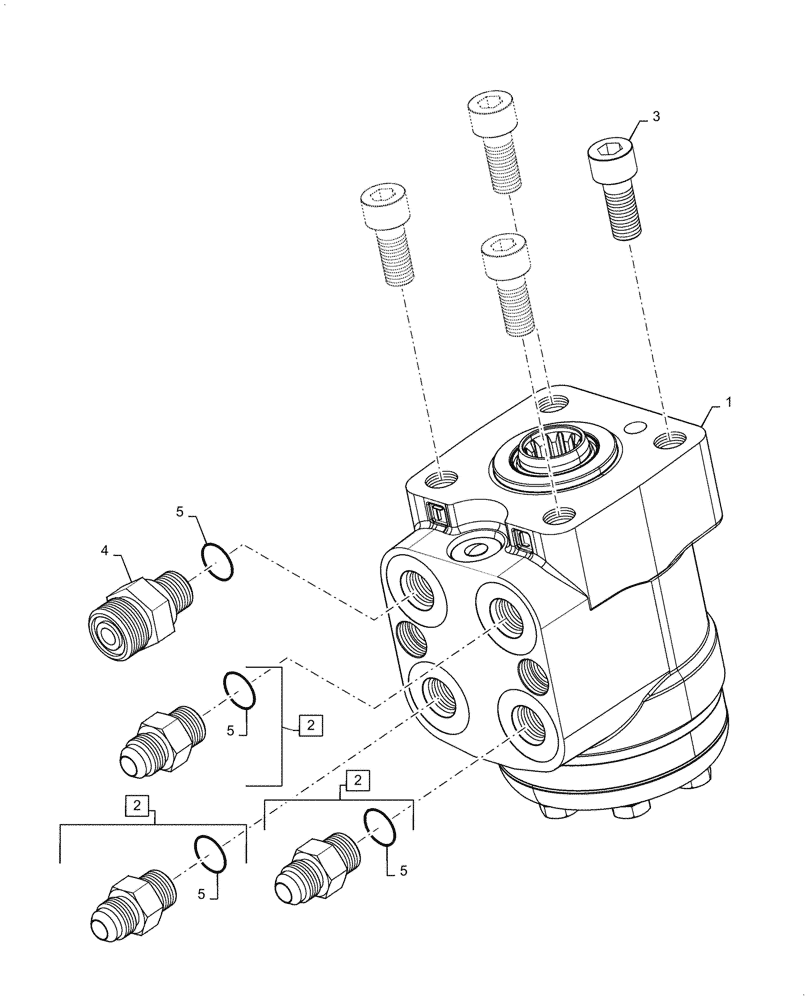

Схема запчастей Case IH FARMALL 55C - (41.206.AA) - POWER STEERING MOTOR (41) - STEERING
4
2
1
5
3
5
5
2
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47944090

STEERING VALVE

Power Steering Pump

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 5

3шт.

3

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

4шт.

4

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

13/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.
