(90.116.AC[02]) - FENDER LINERS

Запчасти Case IH FARMALL 55C (90.116.AC[02]) - FENDER LINERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

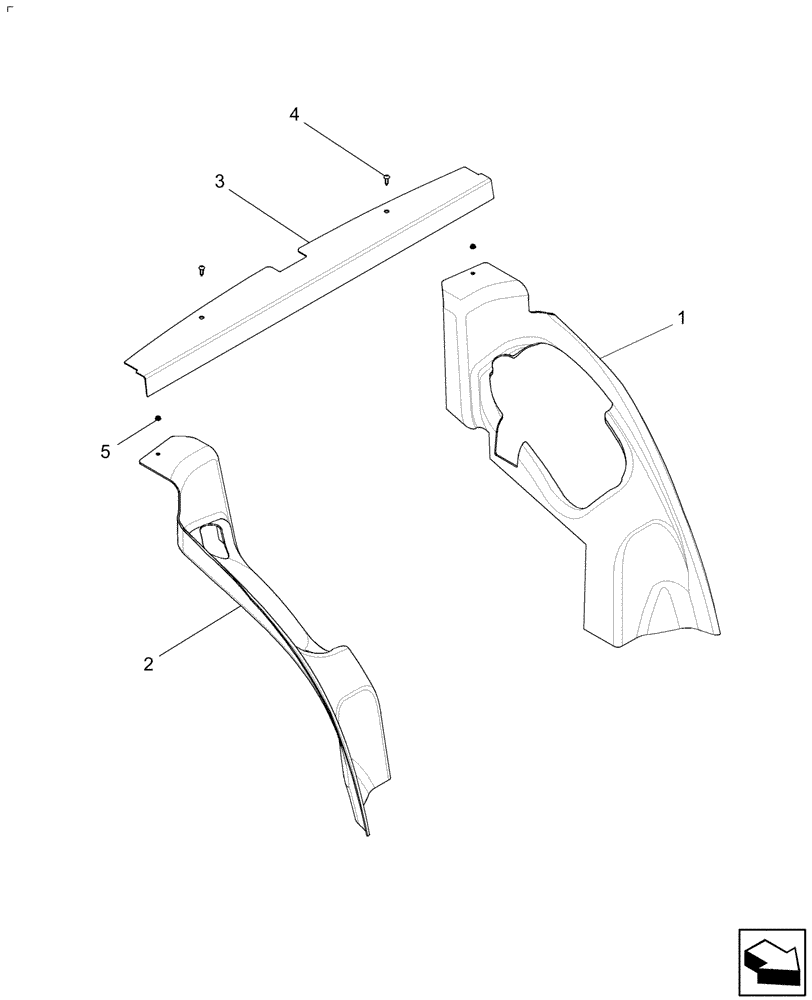

Схема запчастей Case IH FARMALL 55C - (90.116.AC[02]) - FENDER LINERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84209688

TRIM PANEL

Liner, LH, Light Gray

1шт.

2

87680152

FENDER

Liner, RH, Light Gray

1шт.

3

87592671

TRIM PANEL

Rear Shelf

1шт.

4

PL

PROCURE LOCALLY

Screw, Pan Head .3x22

2шт.

5

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

2шт.
