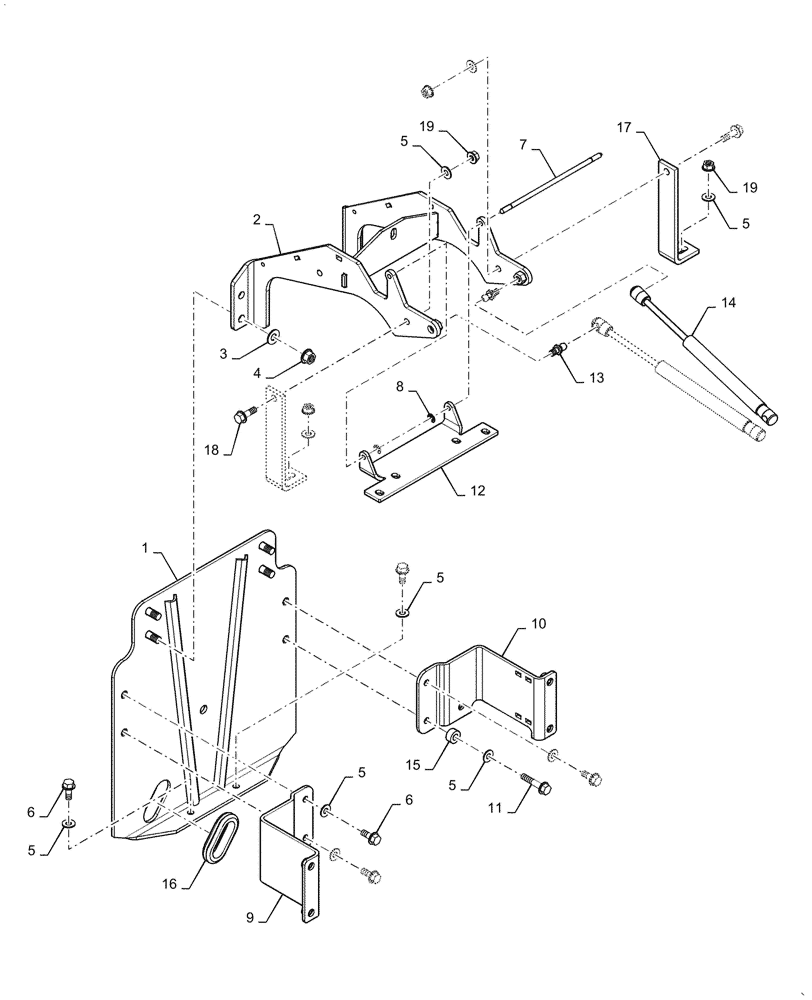

Запчасти Case IH FARMALL 55C (90.100.AJ) - FIREWALL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47589226

BRACKET

Firewall

1шт.

2

47792204

BRACKET

Hood Support

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

4

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

7

86400135

HINGE

Front Hood

1шт.

8

40937

SNAP RING,#25, .207" Dia, E-Type

2шт.

9

87595734

BRACKET

Front Hood, RH

1шт.

10

47793442

BRACKET

Front Hood, LH

1шт.

11

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

12

87300936

BRACKET

Hood Hinge

1шт.

13

83952214

BALL STUD,M8 x 29.5mm OAL

2шт.

14

86543899

GAS STRUT

Hood Support

2шт.

15

47521819

SPACER

9.525mm ID x 19.05mm OD x 9.25mm Thk

1шт.

16

47601630

GROMMET

22mm ID x 41mm OD x 13mm Thk

1шт.

17

47706999

BRACKET

Front Hood Support

2шт.

18

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.
