(90.100.AG[01]) - CONSOLE, FRONT

Запчасти Case IH FARMALL 55C (90.100.AG[01]) - CONSOLE, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

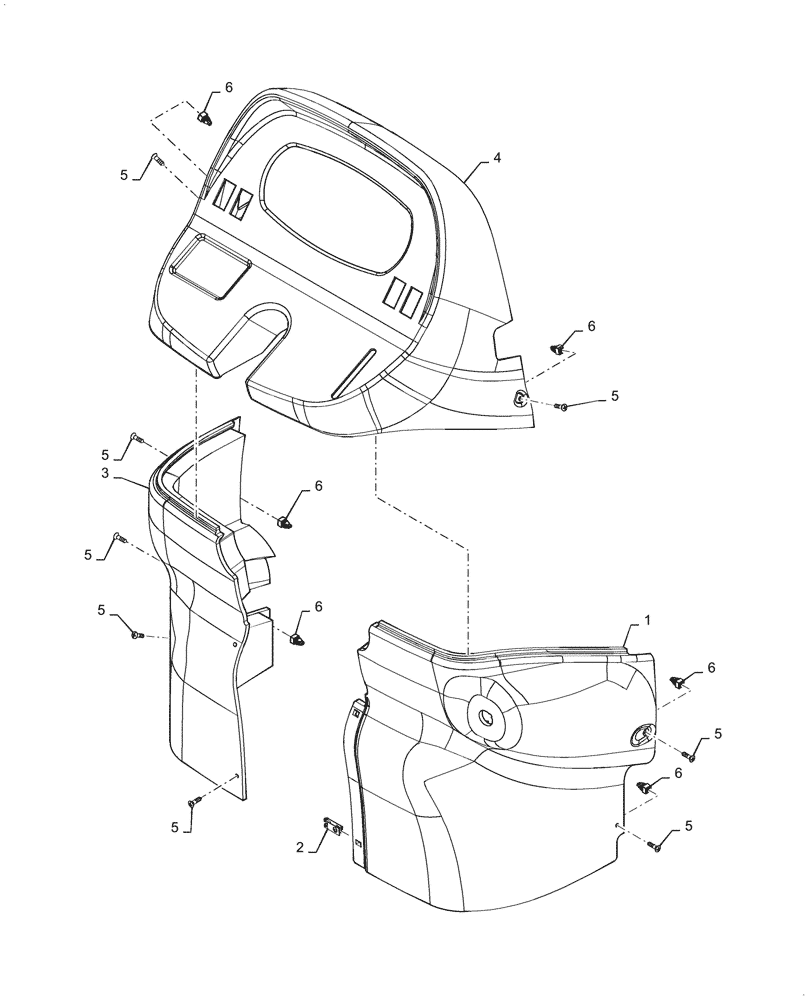

Схема запчастей Case IH FARMALL 55C - (90.100.AG[01]) - CONSOLE, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
5
5
4
6
5
5
6
1
3
6
6
2
6
6
5
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87615428

CONSOLE

Lower, RH

1шт.

2

131-862

SPRING NUT,Tinn, U, #10

2шт.

3

87634840

CONSOLE

Lower, LH

1шт.

4

47527152

CONSOLE

Upper

1шт.

5

86625205

SELF-TAP SCREW

#10 - 16 x 3/4"

8шт.

6

86404659

GROMMET

Screw, Sealed, #10

6шт.

Выбрано товаров: 6
