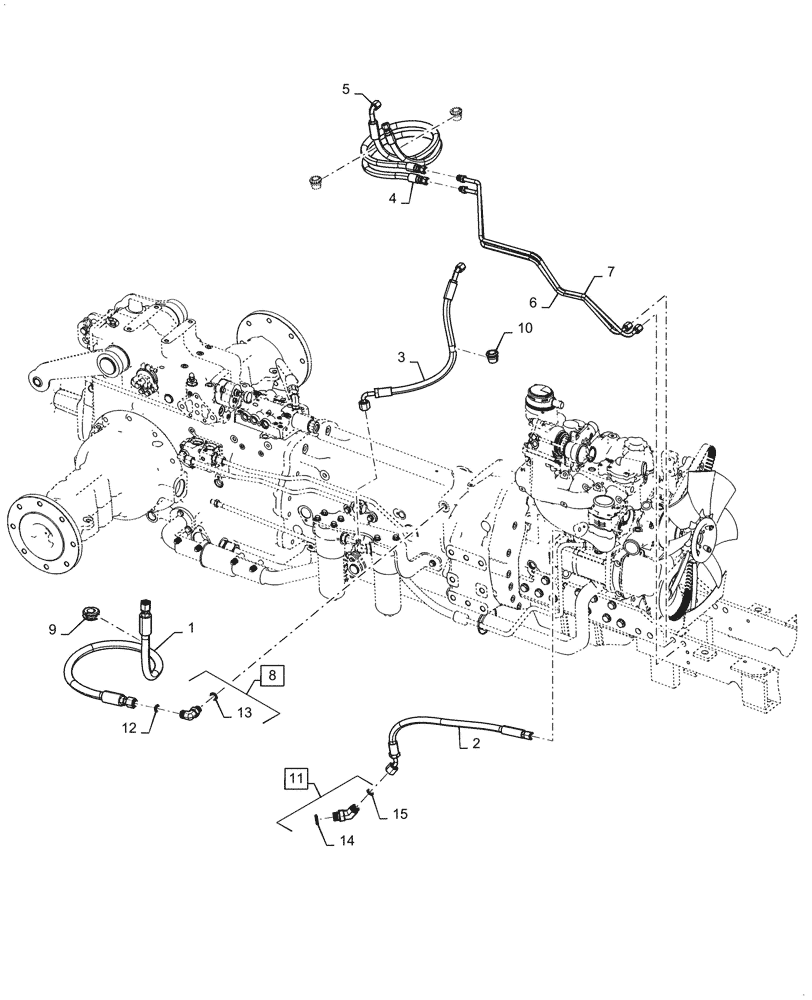

Запчасти Case IH FARMALL 55C (41.200.AA) - POWER STEERING LINES (41) - STEERING

1

47880688

HYDRAULIC HOSE

Steering Return

1шт.

2

47820341

HYDRAULIC HOSE

Steering Filter Supply

1шт.

3

47820338

HYDRAULIC HOSE

Steering Filter Return

1шт.

4

47778285

HYDRAULIC HOSE

Steering, Left Steering Cylinder

1шт.

5

47595505

HYDRAULIC HOSE

Steering, Right Steering Cylinder

1шт.

6

47778288

TUBE

Steering, Left Steering Cylinder

1шт.

7

47636420

TUBE

Steering, Right Steering Cylinder

1шт.

8

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 12 - 13

1шт.

9

257279A1

GROMMET

31.75mm ID x 44.46mm OD x 19.06mm Thk

1шт.

10

195806C1

GROMMET

19.05mm ID x 31.8mm OD x 26.9mm Thk

3шт.

11

47130551

45 ELBOW

-8 ORFS x M22 x 1.5, Incl 13 - 14

1шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
