(25.100.010) - FRONT AXLE, ASSY

Запчасти Case IH FARMALL 55C (25.100.010) - FRONT AXLE, ASSY (25) - FRONT AXLE SYSTEM

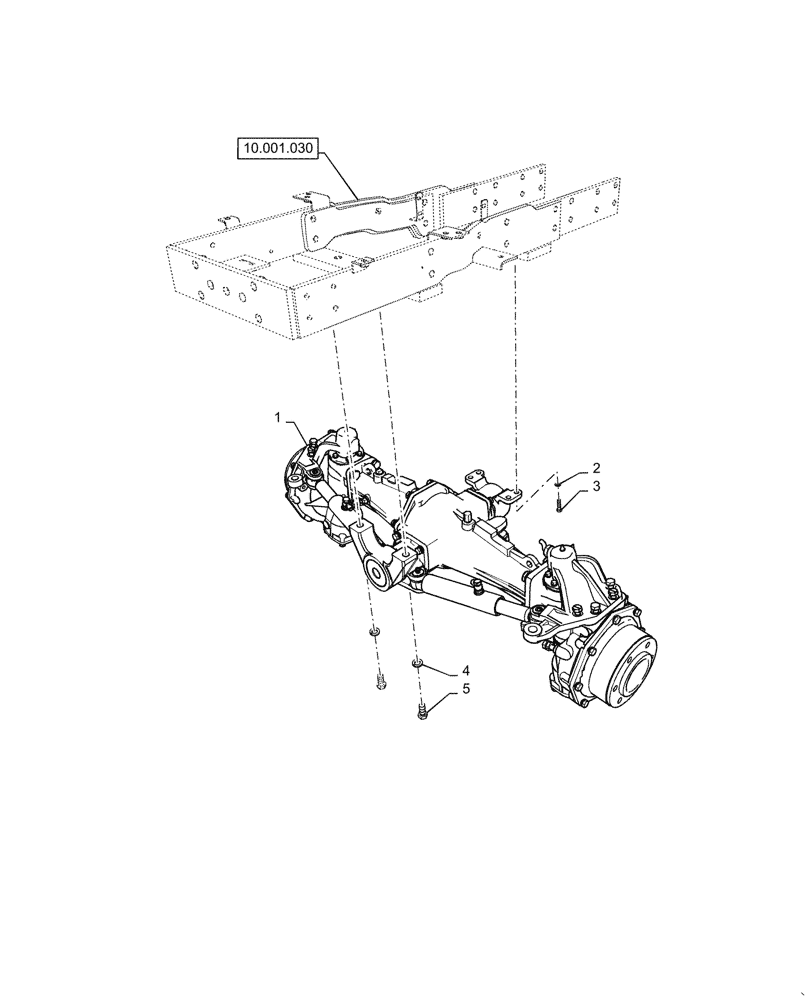

Схема запчастей Case IH FARMALL 55C - (25.100.010) - FRONT AXLE, ASSY (25) - FRONT AXLE SYSTEM
10.001.030
5
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT20144157

FRONT AXLE

Front Axle

1шт.

2

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

4шт.

3

MT40090251

BOLT,M12 x 1.25 x 45mm

4шт.

4

MT40029555

WASHER,16.20mm ID x 28mm OD x 4mm Thk

2шт.

5

MT40029476

BOLT,M16 x 1.5 x 40mm

Hex

2шт.

Выбрано товаров: 5
