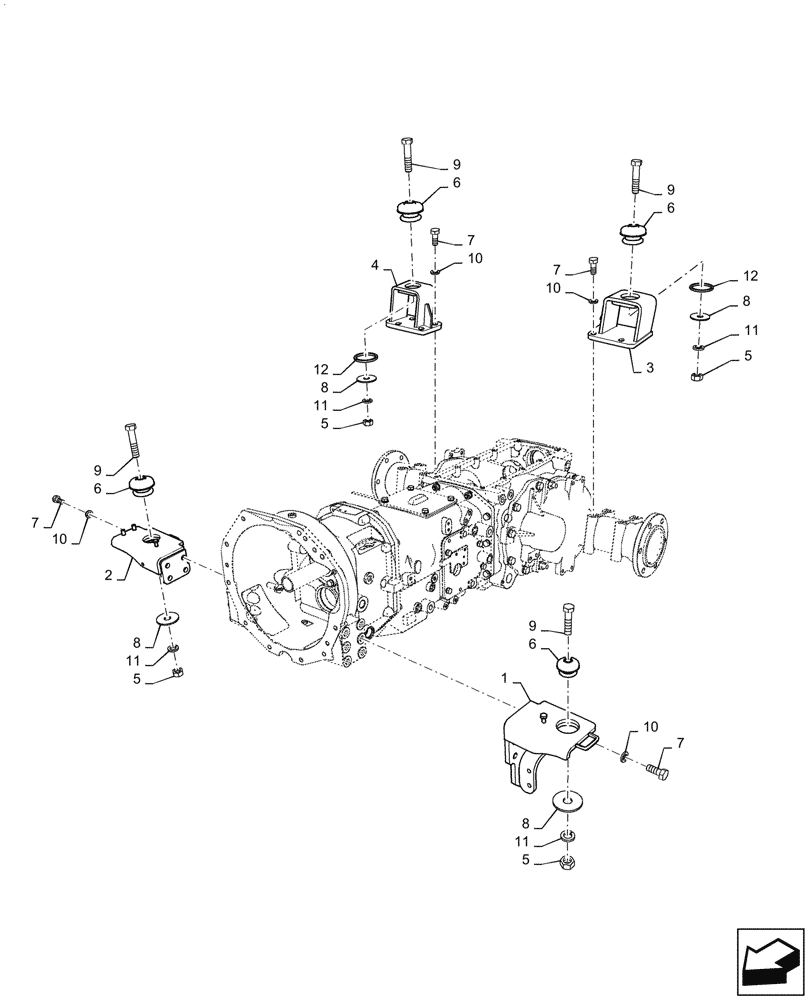

Запчасти Case IH FARMALL 55C (90.118.010) - CAB MOUNT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT40334347

BRACKET

LH Front Mount

1шт.

2

MT40254944

MOUNT

RH Front

1шт.

3

MT40254947

MOUNT

LH Rear

1шт.

4

MT40254948

MOUNT

RH Rear

1шт.

5

MT40029035

NUT,Hex, M20 x 1.5

4шт.

6

MT40291606

RUBBER MOUNTING

4шт.

7

MT40029395

BOLT,Hex, M14 x 2 x 35mm

16шт.

8

MT40030751

WASHER

4шт.

9

MT40078390

BOLT,Hex, M20 x 1.5 x 100mm

4шт.

10

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

16шт.

11

MT40029558

WASHER,20.20mm ID x 33.80mm OD x 5.10mm

4шт.

12

MT40326310

SPACER

Mount

2шт.
