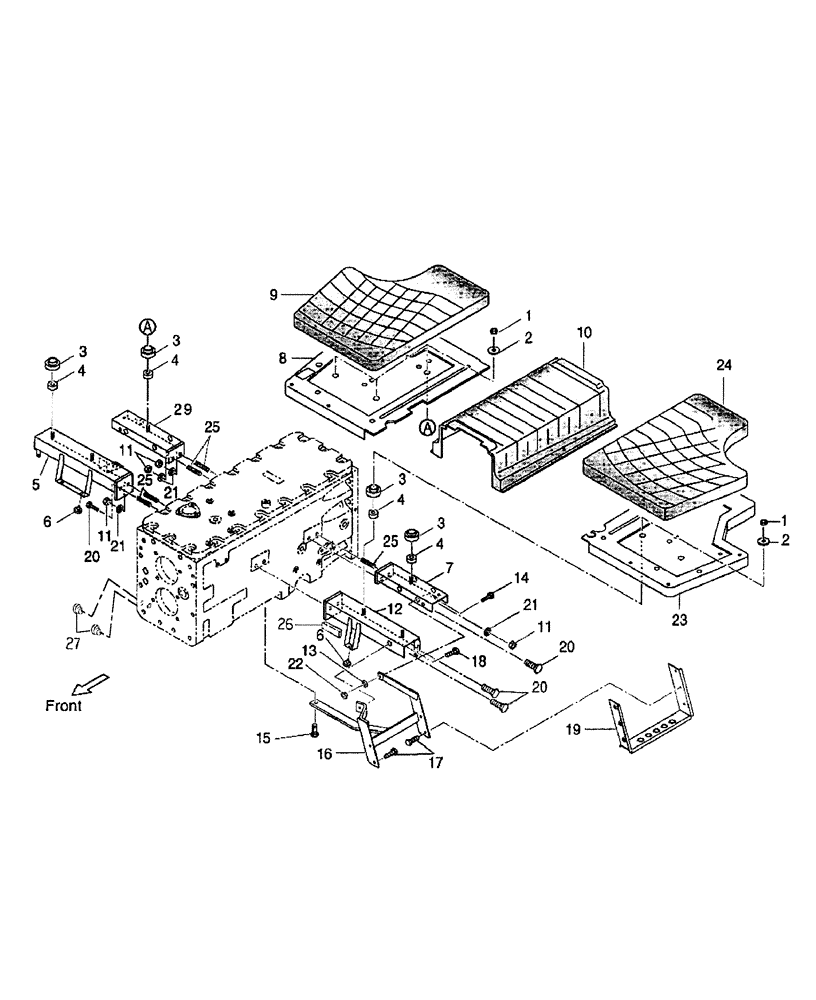

Запчасти Case IH FARMALL 55 (10.02) - STEPS (10) - OPERATORS PLATFORM/CAB

1

SBA021500008

NUT,M8

6шт.

2

SBA026109010

WASHER

6шт.

3

SBA398119920

RUBBER

6шт.

4

SBA399232450

COLLAR

6шт.

5

SBA355501350

BRACKET

Step Support, R

1шт.

5

SBA355501351

SUPPORT

Step, Support, R

1шт.

Uses 529068 Bulb

1шт.

6

SBA398110110

BUMPER

Rubber

3шт.

7

SBA355501220

BRACKET

1шт.

8

SBA355605620

STEP

R

1шт.

9

SBA398121890

RUBBER

R

1шт.

10

SBA398121910

RUBBER

Center

1шт.

11

100016

NUT,M10 x 1.5, Cl 8

4шт.

12

SBA355501180

BRACKET

EHSS

1шт.

12

SBA355501290

BRACKET

SSS

1шт.

13

E630153S71

LOCK WASHER,M8

1шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

15

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

1шт.

16

SBA355605561

STEP

1шт.

17

SBA010800816

BOLT

M8 x 16

4шт.

18

SBA011510816

BOLT

M8 x 16

1шт.

19

SBA355605540

STEP

1шт.

20

SBA011511020

BOLT,M10 x 20

4шт.

21

892-11010

LOCK WASHER,M10

4шт.

22

9706690

NUT,M8 x 1.25, Cl 8

1шт.

23

SBA355605610

STEP

L

1шт.

24

SBA398121880

RUBBER

L

1шт.

25

SBA012111025

BOLT

M10 x 25

5шт.

26

SBA398119790

RUBBER PAD

1шт.

27

SBA398460020

PLUG

1шт.

28

86401063

ANCHOR

Located on Left Hand side under step, attached to transmission housing by two bolts (9804271).

1шт.

Not Illustrated

1шт.

29

SBA355501330

BRACKET

1шт.
