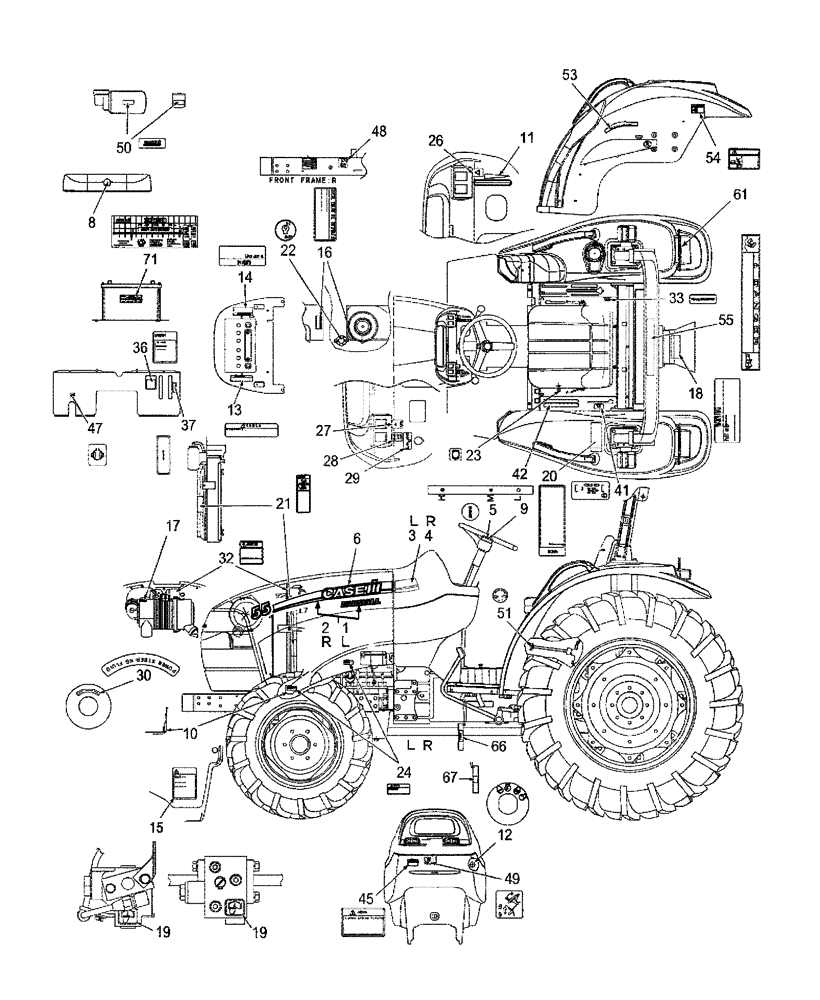

Запчасти Case IH FARMALL 55 (08.05) - DECALS (08) - SHEET METAL

1

SBA390124150

DECAL

55 FARMALL, LH

1шт.

1

SBA390124130

DECAL

60 FARMALL, LH

1шт.

2

SBA390124160

DECAL

55 FARMALL, RH

1шт.

2

SBA390124140

DECAL

60 FARMALL, RH

1шт.

3

SBA390160610

DECAL

LH Rear Hood

1шт.

4

SBA390160620

DECAL

RH Rear Hood

1шт.

4a

87497959

DECAL

FARMALL 85 YEAR ANNIVERSARY

2шт.

Not Illustrated

1шт.

5

SBA390101470

DECAL

CIH, Steering Wheel

1шт.

6

87595770

DECAL

CASE IH

2шт.

8

SBA390101750

ID Plate

1шт.

9

SBA399569250

Plate

1шт.

10

SBA390123101

DECAL

NAME PLATE

2шт.

11

SBA390430290

DECAL

Throttle

1шт.

12

SBA390197280

DECAL

Ignition

1шт.

13

SBA390197660

DECAL

DANGER, Explosive Acid Poison

1шт.

14

SBA490990571

DECAL

WARNING, To Jump Start

1шт.

15

SBA190196684

DECAL

DANGER, Start Engine Only from Operator's Seat

1шт.

16

SBA390198370

DECAL

Diesel Engine Oil Information

1шт.

17

SBA390198352

DECAL

Refuel

1шт.

18

SBA390192293

DECAL

PTO

1шт.

19

SBA390198320

DECAL

Read Operator's Manual

1шт.

20

SBA390198380

DECAL

WARNING, Before Starting & Operating

1шт.

21

SBA390198470

DECAL

Cooling Fan

2шт.

22

SBA390230220

DECAL

Engine Oil

1шт.

23

SBA390198361

DECAL

Parking Brake

1шт.

24

SBA390198480

PLATE

Guard Mounting

4шт.

26

SBA390380770

DECAL

Hazzard

1шт.

27

SBA390380780

DECAL

4-Speed Transmission Lever

1шт.

28

SBA390380791

DECAL

Headlight/Worklight

1шт.

29

SBA390380800

DECAL

Turn Signal

1шт.

30

SBA390230230

DECAL

Power Steering Fluid

1шт.

31

SBA390380810

DECAL

HIGH BEAM

1шт.

32

SBA390198721

DECAL

Caution, Radiator

1шт.

33

SBA390198780

DECAL

10A MAX for DC Power Supply

1шт.

36

SBA390198310

DECAL

IMPORTANT, for Normal Operation

1шт.

37

SBA390173871

DECAL

Control Lever, W/FWD

1шт.

41

SBA390174161

DECAL

PTO

1шт.

42

SBA390174121

DECAL

Range

1шт.

45

SBA390195301

DECAL

Warning

1шт.

47

SBA390198301

DECAL

Differential Lock Pedal

1шт.

48

SBA390198960

DECAL

HOOD LOCK

1шт.

49

SBA390198970

DECAL

Steering Column

1шт.

50

SBA390101501

DECAL

2шт.

51

SBA390372471

DECAL

Flow Control Valve

1шт.

53

SBA390372490

DECAL

Position Control Lever

1шт.

54

SBA390198710

DECAL

CAUTION, OPERATE FROM SEAT

2шт.

55

SBA390197531

DECAL

DANGER, TOP OF ROPS

1шт.

61

86547781

REFLECTOR,RED

Red Reflective, 50mm x 230mm

2шт.

66

SBA390190300

DECAL

Reflector

1шт.

67

SBA390190290

DECAL

Vertical Direction SSS Clutch Pedal Spacer

1шт.

71

SBA390198880

DECAL

1шт.

72

SBA390199390

DECAL

LOW SULFUR FUEL OR ULTRA LOW SULFUR FUEL ONLY

1шт.

Not Illustrated

1шт.
