Запчасти Case IH FARMALL 55 (07.11) - REAR REMOTE #2 SELF CENTERING CONTROL - 719935016 (07) - HYDRAULIC SYSTEM

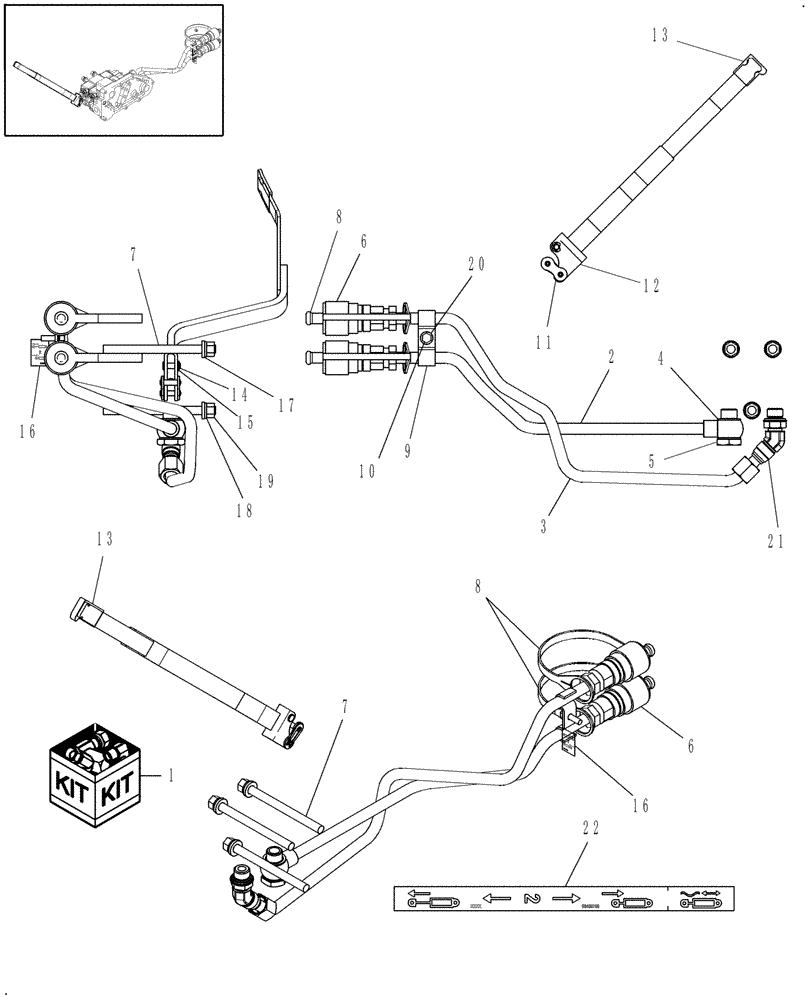

Схема запчастей Case IH FARMALL 55 - (07.11) - REAR REMOTE #2 SELF CENTERING CONTROL - 719935016 (07) - HYDRAULIC SYSTEM
9
6
16
10
18
13
3
4
1
16
7
8
22
2
15
19
13
7
12
20
6
17
5
14
8
11
21

Артикул

Название

Примечание

Количество

1

719935016

DIA KIT, ADD PROD

Rear Remote #2 Self Centering Control Includes: Ref. 2-22

1шт.

2

86404881

TUBE,12.70 mm OD

Valve 2, Lower

1шт.

3

86404882

TUBE,12.70 mm OD

Valve 2, Raise

1шт.

4

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

3/8"

2шт.

5

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5

1шт.

6

256231

COUPLING, QUICK, FEM

Female. Male Coupler is 9801618

2шт.

7

5150104

STUD,3/8" - 24 x 5"

3шт.

8

5186723

DUST CAP,24mm, Black

Dust, 1/2" Coupler

2шт.

9

86524859

CLAMP

Tube Holder

1шт.

10

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

11

5116896

LINK,19.05mm Pitch

1шт.

12

86405820

LEVER

Lever 3 or 4 Position Rear Remote

1шт.

13

86405812

KNOB

Lever

1шт.

14

5172456

PIN,6mm OD x 20mm L

Spool Connection

1шт.

15

11087776

CIRCLIP,Ext., M6, BLO

1шт.

16

87301389

DECAL

Coupler

1шт.

17

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

3шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

19

86509310

NUT,3/8" - 24, Gr 5

3шт.

20

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

21

87327028

45 ELBOW

Elbow 45 Degree

1шт.

22

86405758

DECAL

Pod Slot

1шт.

Выбрано товаров: 22
