(06.05) - WORKLIGHT KIT - ROPS MOUNTED

Запчасти Case IH FARMALL 55 (06.05) - WORKLIGHT KIT - ROPS MOUNTED (06) - ELECTRICAL SYSTEMS

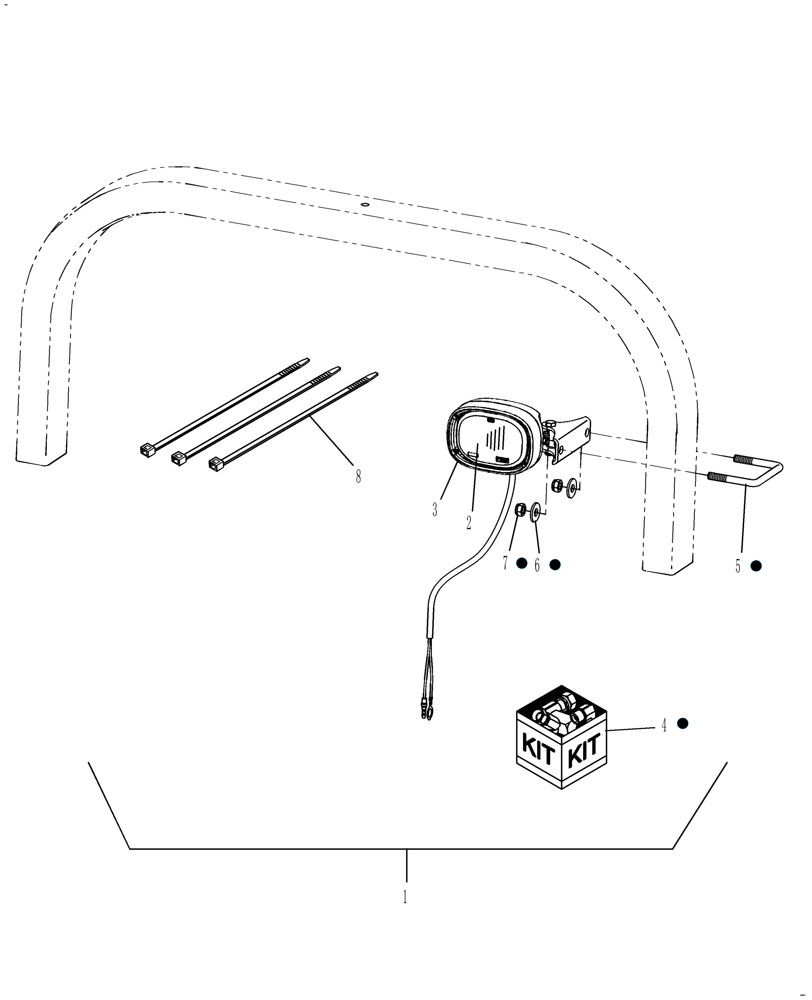

Схема запчастей Case IH FARMALL 55 - (06.05) - WORKLIGHT KIT - ROPS MOUNTED (06) - ELECTRICAL SYSTEMS
1
6
5
2
7
3
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87702596

DIA KIT, ADD PROD

Worklight Includes: Ref. 2-8

1шт.

2

87702593

LENS

Sealed Beam & Gasket

1шт.

3

87470106

LAMP

Worklight & Harness

1шт.

4

87702591

DIA KIT, ADD PROD

Bracket Kit Includes: Ref. 5-7

1шт.

5

NSS

NOT SOLD SEPARAT

U-Bolt

1шт.

6

PL

PROCURE LOCALLY

M10 Flat Washer

2шт.

7

PL

PROCURE LOCALLY

M10 Lock Nut

2шт.

8

PL

PROCURE LOCALLY

Tie Wrap

3шт.
