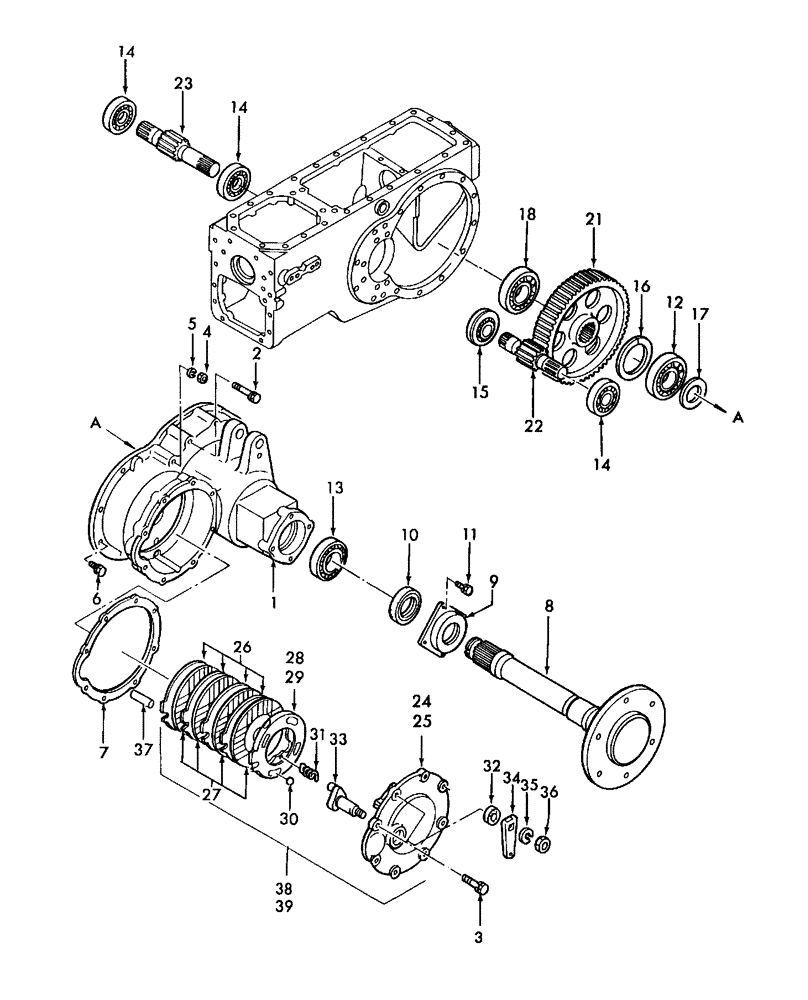

Запчасти Case IH FARMALL 55 (05.02) - BRAKE & WHEEL SHAFT CASE (05) - REAR AXLE

1

SBA326345290

CASE

Wheel Shaft

2шт.

2

SBA011511075

BOLT

M10 x 75

16шт.

3

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

16шт.

4

SBA021010010

NUT,M10 x 1.25

4шт.

5

892-11010

LOCK WASHER,M10

4шт.

6

SBA011511035

BOLT,M10 x 35

8шт.

7

SBA328990130

GASKET

2шт.

8

SBA326312490

WHEEL SHAFT

2шт.

9

SBA326360480

COVER

Seal

2шт.

10

SBA050609041

OIL SEAL

2шт.

11

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

8шт.

12

V16259

BEARING,65mm ID x 120mm OD x 23mm W

Ball

2шт.

13

210038

BALL BEARING,70 mm ID x 110 mm OD x 20 mm

2шт.

14

9845118

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

3шт.

15

SBA040156309

BEARING ASSY

1шт.

18

28996590

BALL BEARING

2шт.

21

SBA326370850

GEAR

Final

2шт.

22

SBA326211680

SHAFT

Differential, L.H.

1шт.

23

SBA326211690

SHAFT

Differential, L.H.

1шт.

23

SBA326211111

SHAFT

Differential, R.H.

1шт.

24

SBA328200450

COVER

Brake, L.H.

1шт.

25

SBA328200470

COVER

Brake, R.H.

1шт.

26

SBA328560210

DISC

Stator

8шт.

27

SBA328110161

DISC

8шт.

28

SBA328560200

ACTUATOR

L.H.

1шт.

29

SBA328560230

ACTUATOR

R.H.

1шт.

30

SBA048109004

BALL

Steel

8шт.

31

SBA398213340

SPRING

6шт.

32

SBA050109015

SEAL

2шт.

33

SBA328310160

CAM

2шт.

34

SBA328320810

LEVER

2шт.

35

9847025

LOCK WASHER,21.2mm ID x 33.6mm OD x 6mm Thk

2шт.

36

100085

NUT,M20 x 1.5, Cl 8

2шт.

37

SBA328260150

PIN

Anchor

2шт.

38

SBA328002520

BRAKE ASSY.

LH

1шт.

39

SBA328002530

BRAKE ASSY.

RH

1шт.
