(04.03.02) - HYDRAULIC PUMP & REPAIR KIT

Запчасти Case IH FARMALL 55 (04.03.02) - HYDRAULIC PUMP & REPAIR KIT (04) - FRONT AXLE & STEERING

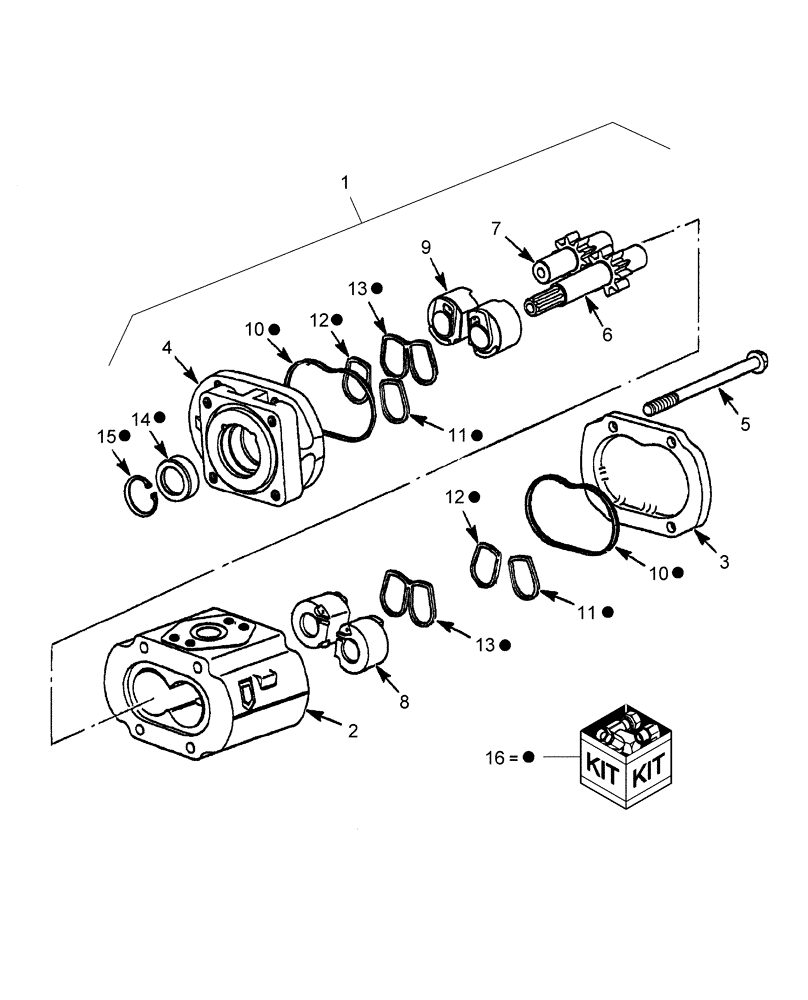

Схема запчастей Case IH FARMALL 55 - (04.03.02) - HYDRAULIC PUMP & REPAIR KIT (04) - FRONT AXLE & STEERING
16
9
8
12
11
6
10
7
4
12
11
2
3
1
5
13
15
13
10
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA340451140

HYDRAULIC PUMP

Includes: Ref. 2 thru 16

1шт.

SBA340451140R

REMAN-HYD PUMP

FARMALL 55, FARMALL 60 both COMPACT TRACTOR W/ROPS

1шт.

SBA340451140C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Rear Cover

1шт.

4

NSS

NOT SOLD SEPARAT

Front Cover

1шт.

5

NSS

NOT SOLD SEPARAT

Bolt

4шт.

6

NSS

NOT SOLD SEPARAT

Drive Shaft

1шт.

7

NSS

NOT SOLD SEPARAT

Pump Gear

1шт.

8

NSS

NOT SOLD SEPARAT

Wear Block, LH

2шт.

9

NSS

NOT SOLD SEPARAT

Wear Block, RH

2шт.

10

SBA340293700

SEAL

Body

2шт.

11

SBA340293705

RING

Backup, LH

2шт.

12

SBA340293703

RING

Backup, RH

2шт.

13

SBA340293701

SEAL

Seal, Ring

2шт.

14

SBA340293702

SEAL

Oil

1шт.

15

SBA036500034

SNAP RING

1шт.

16

SBA340293698

SEAL KIT

Includes: Ref. 10 thru 15

1шт.
