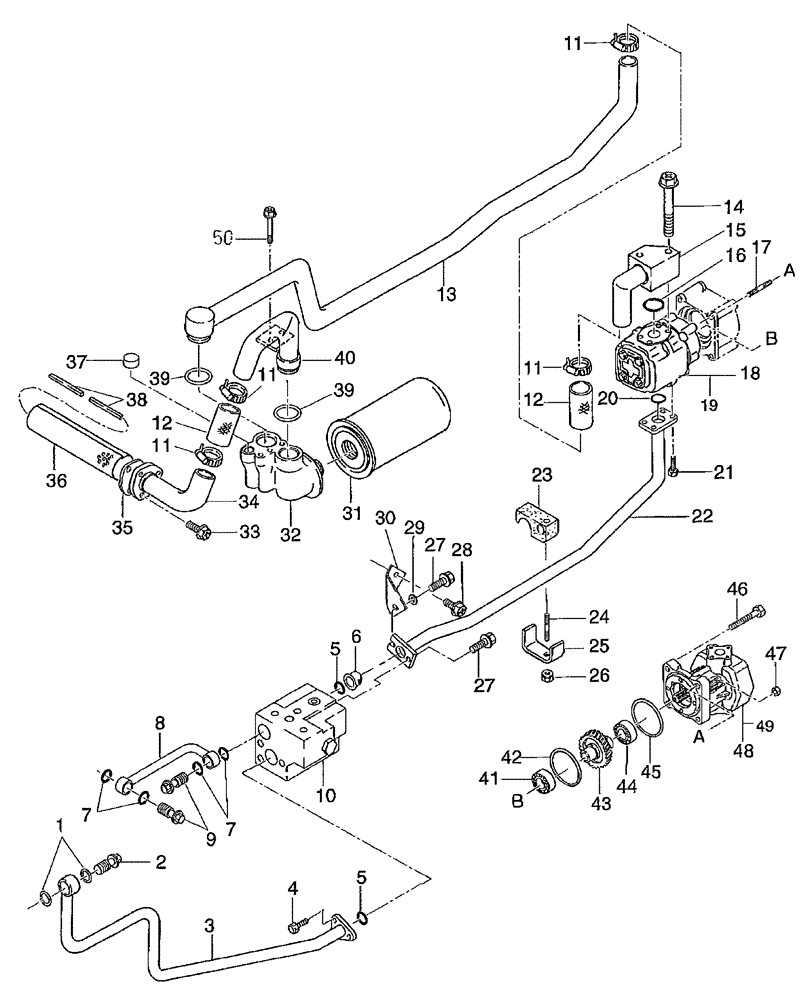

Запчасти Case IH FARMALL 55 (04.03.01) - POWER STEERING PUMP & HYDRAULIC PUMP - SSS (04) - FRONT AXLE & STEERING

1

SBA052110250

O-RING

2шт.

2

SBA398480250

BANJO BOLT,1/2"

1шт.

3

SBA340709740

PIPE

Oil

1шт.

4

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

3шт.

5

83938932

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

(Replaces SBA052110200)

2шт.

6

SBA340520260

FILTER

1шт.

7

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

4шт.

8

SBA340709910

PIPE

Oil

1шт.

9

SBA398480240

BANJO BOLT,3/8"

2шт.

10

SBA340016731

VALVE

Manifold Block Refer to Fig. 04.03.04 for breakdown

1шт.

11

SBA398750450

BAND

4шт.

12

SBA398116490

HOSE

2шт.

13

SBA340709690

PIPE

Oil

1шт.

14

SBA011511060

BOLT

M10 x 60

2шт.

15

SBA340709770

PIPE

Oil

1шт.

16

83922405

O-RING,3.1mm Thk x 34.4mm ID, 70 Duro

1шт.

17

SBA012110865

STUD

2шт.

18

SBA340451140

HYDRAULIC PUMP

Oil

1шт.

SBA340451140R

REMAN-HYD PUMP

FARMALL 55, FARMALL 60 both COMPACT TRACTOR W/ROPS

1шт.

SBA340451140C

CORE-HYDRAULIC PUMP

Return Number

1шт.

19

SBA340293698

SEAL KIT

1шт.

20

SBA052310250

O-RING

1шт.

21

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

4шт.

22

SBA340709921

HYD TUBE

Oil

1шт.

23

SBA398120820

RUBBER PAD

1шт.

24

SBA012111045

SCREW

M10 x 45

1шт.

25

SBA399112270

CLAMP

1шт.

26

SBA021500008

NUT,M8

1шт.

27

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

2шт.

28

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

4шт.

29

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

30

SBA340811000

BRACKET

1шт.

31

SBA340500960

HYDRAULIC OIL FILTER

1шт.

32

SBA340622460

FLANGE

Oil Filter

1шт.

33

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

3шт.

34

SBA340709710

PIPE

Oil

1шт.

35

SBA340990070

GASKET

1шт.

36

SBA340520180

FILTER

1шт.

37

SBA398460340

PLUG

1шт.

38

SBA324910090

MAGNET

6шт.

39

SBA052100350

O-RING

2шт.

40

SBA340709720

PIPE

Oil

1шт.

41

SBA040136005

BALL BEARING

1шт.

42

SBA052310700

O-RING

1шт.

43

SBA340460240

GEAR

Drive

1шт.

44

44680

BALL BEARING,20mm ID x 42mm OD x 12mm W

1шт.

45

SBA052300600

O-RING,G60

1шт.

46

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

47

SBA021500008

NUT,M8

1шт.

48

SBA340451020

HYDRAULIC PUMP

Power Steering

1шт.

SBA340451020R

REMAN-HYD PUMP

FARMALL 60, FARMALL 55 BOTH COMPACT TRACTOR W/ROPS

1шт.

SBA340451020C

CORE-HYDRAULIC PUMP

Return Number

1шт.

49

SBA340490224

SEAL KIT

Power Steering Used With SBA340451060 Pump

1шт.

50

SBA011310655

BOLT,Hex, M6 x 55, Cl 8.8

2шт.
