Запчасти Case IH FARMALL 55 (04.03) - POWER STEERING PUMP & HYDRAULIC PUMP - EHSS (04) - FRONT AXLE & STEERING

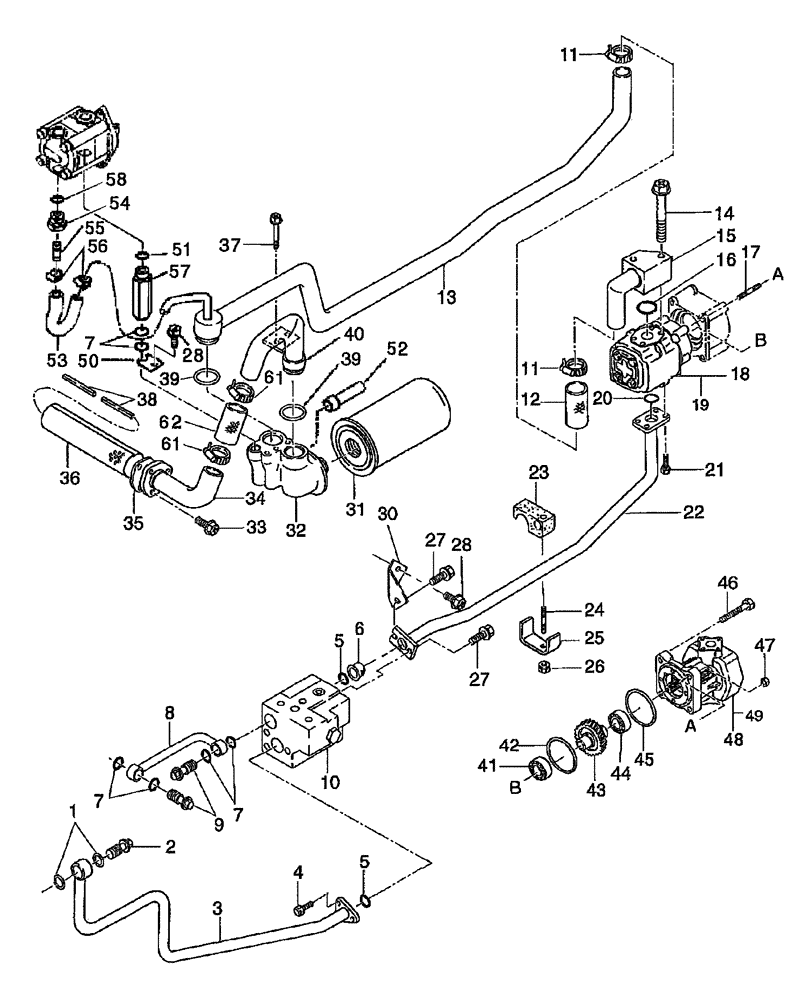

Схема запчастей Case IH FARMALL 55 - (04.03) - POWER STEERING PUMP & HYDRAULIC PUMP - EHSS (04) - FRONT AXLE & STEERING
3
57
39
55
54
16
17
13
51
12
22
56
8
23
37
10
7
53
33
1
47
28
48
34
30
20
61
27
26
49
7
4
36
61
18
52
35
24
43
38
58
14
45
32
39
27
21
2
25
9
6
46
11
42
50
28
62
44
11
40
5
41
19
15
31
7
5

Артикул

Название

Примечание

Количество

1

SBA052110250

O-RING

2шт.

2

SBA398480250

BANJO BOLT,1/2"

1шт.

3

SBA340709740

PIPE

Oil

1шт.

4

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

4шт.

5

83938932

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

(Replaces SBA052110200)

2шт.

6

SBA340520260

FILTER

1шт.

7

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

6шт.

8

SBA340709780

PIPE

Oil

1шт.

9

SBA398480240

BANJO BOLT,3/8"

2шт.

10

SBA340016440

VALVE

Manifold Diverter Block, Refer to Fig. 04.03.03 for Breakdown

1шт.

11

SBA398750450

BAND

2шт.

12

SBA398116490

HOSE

2шт.

13

SBA340709950

PIPE

Oil

1шт.

14

SBA011511060

BOLT

M10 x 60

2шт.

15

SBA340709770

PIPE

Oil

1шт.

16

83922405

O-RING,3.1mm Thk x 34.4mm ID, 70 Duro

1шт.

17

SBA012110865

STUD

2шт.

18

SBA340451140

HYDRAULIC PUMP

Oil

1шт.

SBA340451140R

REMAN-HYD PUMP

FARMALL 55, FARMALL 60 both COMPACT TRACTOR W/ROPS

1шт.

SBA340451140C

CORE-HYDRAULIC PUMP

Return Number

1шт.

19

SBA340293698

SEAL KIT

1шт.

20

SBA052310250

O-RING

1шт.

21

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

4шт.

22

SBA340709730

PIPE

Oil

1шт.

23

SBA398120820

RUBBER PAD

1шт.

24

SBA012111045

SCREW

M10 x 45

1шт.

25

SBA399112270

CLAMP

1шт.

26

SBA021500008

NUT,M8

1шт.

27

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

1шт.

28

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

30

SBA340810540

BRACKET

1шт.

31

SBA340500951

HYDRAULIC OIL FILTER

1шт.

32

SBA340622430

FLANGE

1шт.

33

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

3шт.

34

SBA340550420

PIPE

Oil

1шт.

35

SBA340990070

GASKET

1шт.

36

SBA340520180

FILTER

1шт.

37

SBA011310655

BOLT,Hex, M6 x 55, Cl 8.8

Blank

2шт.

38

SBA324910090

MAGNET

6шт.

39

SBA052100350

O-RING

2шт.

40

SBA340550430

PIPE

Oil

1шт.

41

SBA040136005

BALL BEARING

1шт.

42

SBA052310700

O-RING

1шт.

43

SBA340460240

GEAR

Drive

1шт.

44

44680

BALL BEARING,20mm ID x 42mm OD x 12mm W

1шт.

45

SBA052300600

O-RING,G60

1шт.

46

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

47

SBA021500008

NUT,M8

2шт.

48

SBA340451020

HYDRAULIC PUMP

Power Steering

1шт.

SBA340451020R

REMAN-HYD PUMP

FARMALL 60, FARMALL 55 BOTH COMPACT TRACTOR W/ROPS

1шт.

SBA340451020C

CORE-HYDRAULIC PUMP

Return Number

1шт.

49

SBA340490224

SEAL KIT

Power Steering Used With SBA340451060 Pump

1шт.

50

SBA399566510

PLATE

1шт.

51

SBA052400200

O-RING

1шт.

52

SBA340709931

PIPE

Oil

1шт.

53

SBA340693111

HOSE

Oil

1шт.

54

SBA340673480

ADAPTER

1шт.

55

SBA145986090

TUBE

1шт.

56

SBA398756280

HOSE CLAMP

Hose

2шт.

57

SBA340674060

ADAPTER

1шт.

58

SBA052110180

O-RING

1шт.

61

SBA398750440

BAND

2шт.

62

SBA398122560

HOSE

1шт.

Выбрано товаров: 63
