Запчасти Case IH FARMALL 55 (03.04.01) - FRONT TRANSMISSION GEARS - SSS (03) - TRANSMISSION

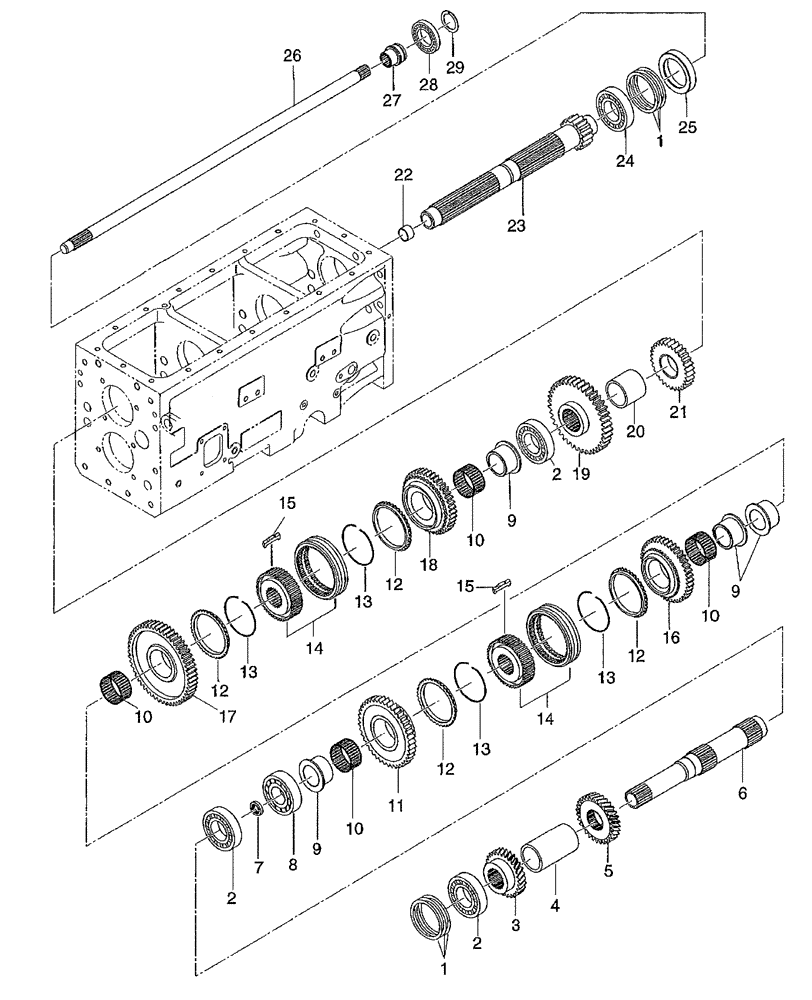

Схема запчастей Case IH FARMALL 55 - (03.04.01) - FRONT TRANSMISSION GEARS - SSS (03) - TRANSMISSION
14
1
9
1
28
22
17
13
10
27
10
18
12
8
7
9
24
20
15
11
13
12
12
25
13
9
10
2
19
4
2
21
29
2
10
26
3
15
14
12
23
5
13
16
6

Артикул

Название

Примечание

Количество

1

SBA199280750

SHIM,0.1mm Thk

1шт.

1

SBA199280760

SHIM

.2 or 0.008"

1шт.

1

SBA199280770

SHIM

.5 or 0.020"

1шт.

2

114085

BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm

4шт.

3

SBA322326660

GEAR

Fixing, A

1шт.

4

SBA399235880

COLLAR

1шт.

5

SBA322326650

GEAR

Fixing, A

1шт.

6

SBA322514320

SHAFT

Drive

1шт.

7

SBA050209099

OIL SEAL

1шт.

8

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

2шт.

9

SBA322613270

COUPLING

4шт.

10

SBA042209006

BEARING ASSY

Needle

4шт.

11

SBA322383210

GEAR

Counter, B

1шт.

12

SBA322410061

RING

Synchronizer

4шт.

13

SBA398212470

SNAP RING

4шт.

14

SBA322031401

GEAR SET

2шт.

15

SBA322420040

KEY

3шт.

16

SBA322383010

GEAR

Counter B

1шт.

17

SBA322383220

GEAR

Counter B

1шт.

18

SBA322383230

GEAR

Counter B

1шт.

19

SBA322327010

GEAR

Fixing, A

1шт.

20

SBA399233230

COLLAR

1шт.

21

SBA322327020

GEAR

Fixing A

1шт.

22

SBA398512080

BUSHING

1шт.

23

SBA322531930

SHAFT

Counter

1шт.

24

114085

BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm

1шт.

25

SBA320190660

HOLDER

1шт.

26

SBA322514310

SHAFT

Drive

1шт.

27

SBA322613230

COUPLING

1шт.

28

SBA040109052

BALL BEARING,35mm ID x 62mm OD x 9mm W

1шт.

29

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

Выбрано товаров: 31
