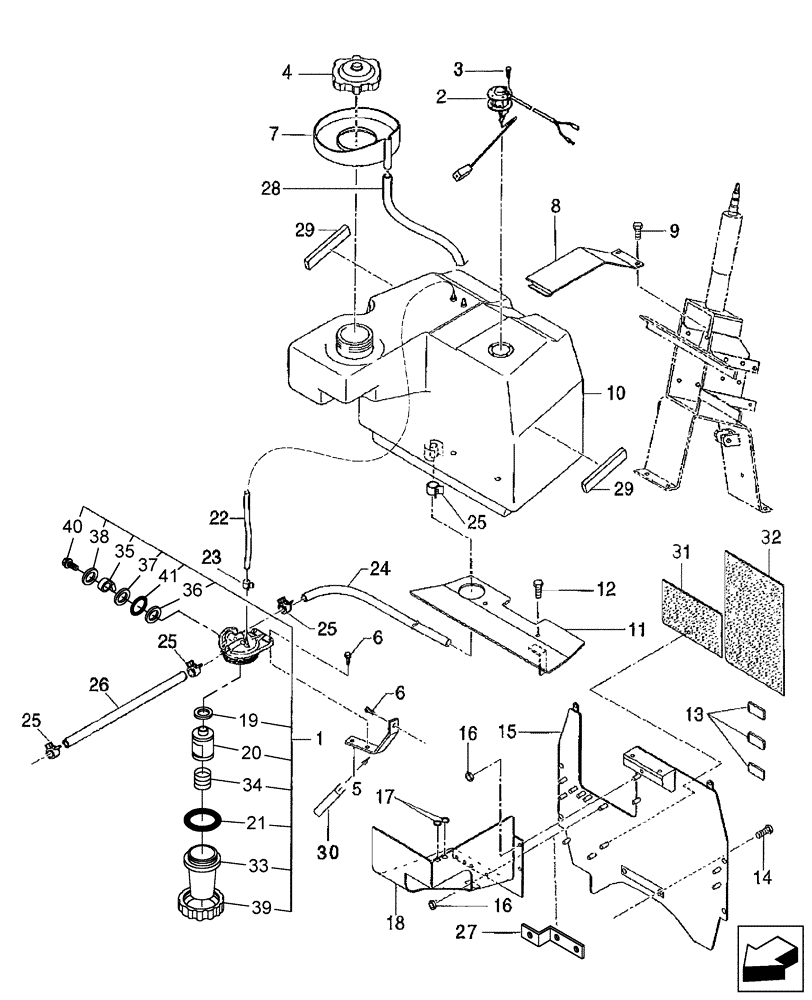

Запчасти Case IH FARMALL 55 (02.05) - FUEL TANK & FILTER (02) - ENGINE EQUIPMENT

1

SBA360700220

FUEL FILTER

Includes: Ref. 19-21, 33-41

1шт.

2

SBA385280270

FUEL GAUGE

1шт.

3

SBA015140512

SCREW

M15 x 12

5шт.

4

86558080

FILLER CAP

1шт.

5

SBA360560280

SUPPORT

Filter

1шт.

6

SBA011510816

BOLT

M8 x 16

3шт.

7

SBA360410151

COVER

1шт.

8

SBA360510930

HOLDER

1шт.

9

SBA010800816

BOLT

M8 x 16

2шт.

10

SBA360102210

TANK

Fuel

1шт.

11

SBA360501371

HOLDER

Tank

1шт.

12

SBA011510816

BOLT

M8 x 16

3шт.

13

SBA398113740

RUBBER PAD

3шт.

14

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

15

SBA310353381

PLATE

1шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

17

SBA398110240

GROMMET

2шт.

18

SBA310353390

PLATE

1шт.

19

SBA052100160

O-RING

1шт.

20

87300042

FUEL FILTER

1шт.

21

SBA052300650

O-RING,64.4mm ID x 3.1mm Width

1шт.

22

SBA360770730

HOSE

Return

1шт.

23

SBA067200078

HOSE CLAMP

2шт.

24

SBA360770360

FLEXIBLE HOSE

In

1шт.

25

SBA067200130

CLAMP

4шт.

26

SBA360770600

HOSE

1шт.

27

SBA350851870

HOLDER

Holder, Relay

1шт.

28

SBA068122850

TUBE

1шт.

29

SBA398135720

PADDING

1шт.

30

SBA398119790

RUBBER PAD

2шт.

31

SBA398136150

FOAM INSULATION

1шт.

32

SBA398136160

FOAM INSULATION

1шт.

33

SBA360710050

FILTER BOWL

1шт.

34

SBA360740120

SPRING

1шт.

35

SBA360740116

LEVER

1шт.

36

SBA360740117

RUBBER RING

1шт.

37

SBA360740118

WASHER

1шт.

38

SBA360740119

PLATE

1шт.

39

SBA360740115

NUT

1шт.

40

86511815

SCREW,Pan, M3 x 0.5 x 8mm, Cl 4.8

2шт.

41

SBA052400290

O-RING

1шт.
