Запчасти Case IH FARMALL 55 (11.04) - REAR WHEEL WEIGHTS, 105 LBS., AG ONLY (11) - WHEELS/TRACKS

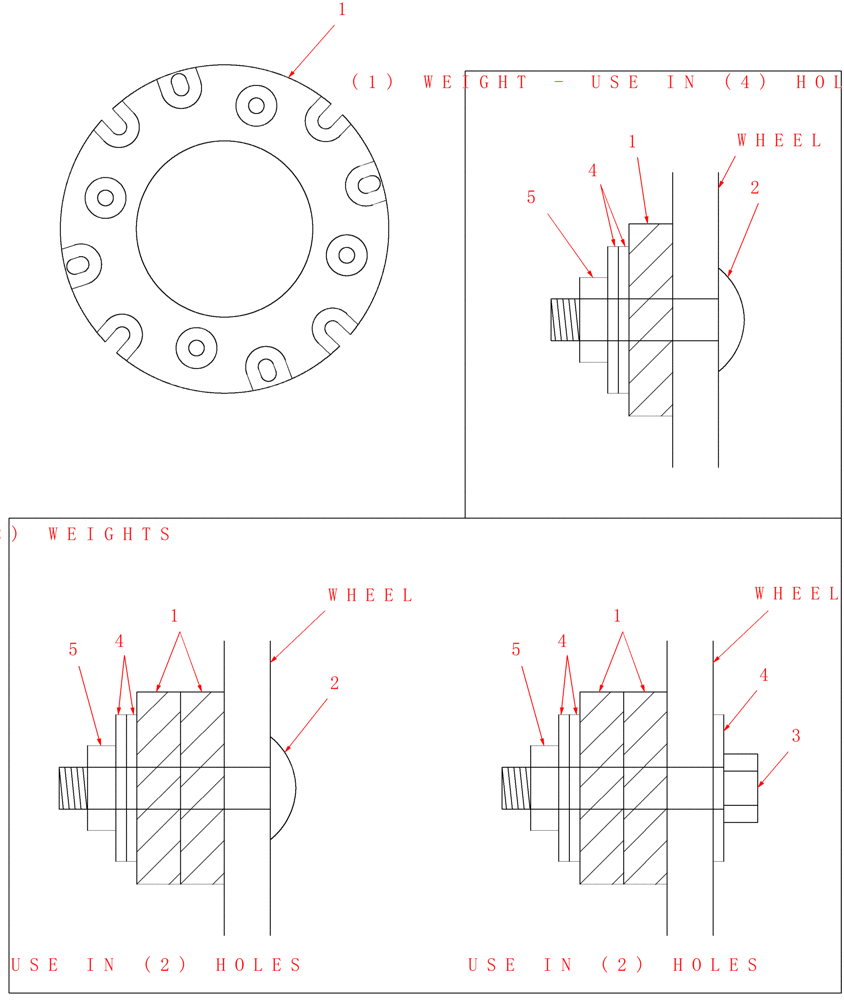

Схема запчастей Case IH FARMALL 55 - (11.04) - REAR WHEEL WEIGHTS, 105 LBS., AG ONLY (11) - WHEELS/TRACKS
wheel
(2) weights
2
wheel
3
4
1
2
4
5
wheel
4
(1) weight - use in (4) holes
use in (2) holes
4
5
5
1
use in (2) holes
1
1

Артикул

Название

Примечание

Количество

1

710470026

WHEEL WEIGHT

Rear, 105 Lbs, AG Only

1шт.

2

280563

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

Used W/(1) Weight Per Wheel

4шт.

2

280563

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

Used W/(2) Weight Per Wheel

2шт.

3

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

Used With (2) Weights Per Wheel

2шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Used With (1) Weight Per Wheel

8шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Used With (2) Weights Per Wheel

10шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

Use (4) w/Both (1) & (2) Weights Per Wheel

4шт.

Выбрано товаров: 7
