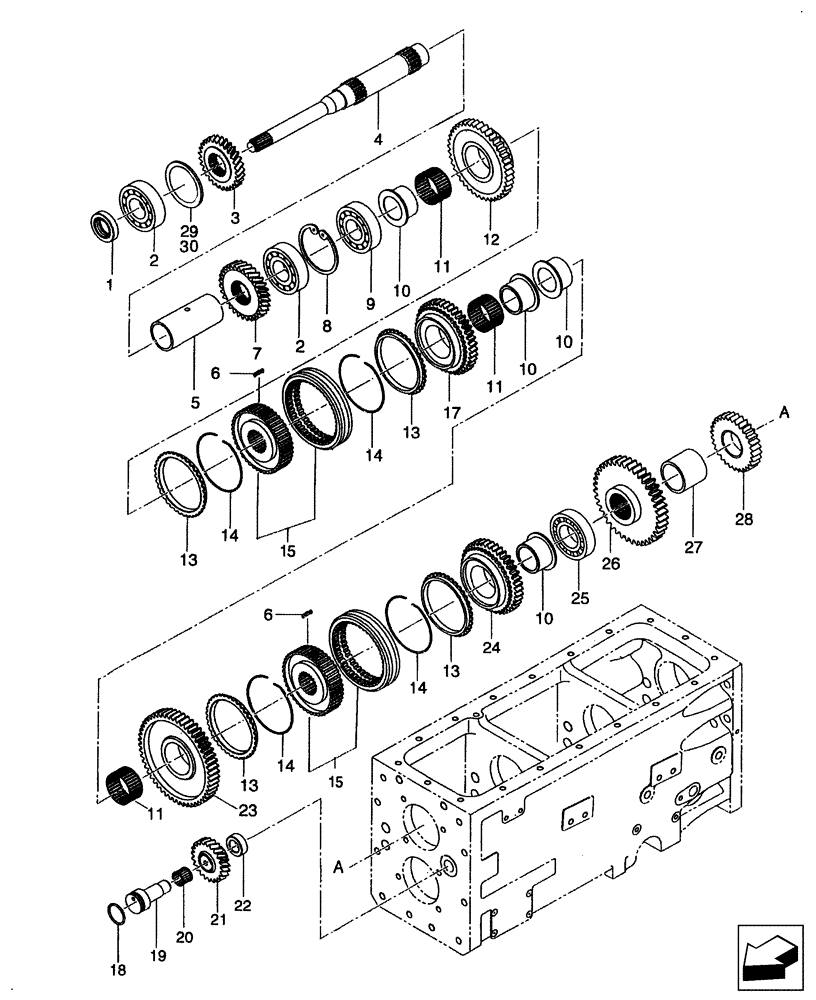

Запчасти Case IH FARMALL 55 (03.04) - FRONT TRANSMISSION GEARS - EHSS (03) - TRANSMISSION

1

SBA050202330

SEAL

Oil

1шт.

2

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

3

SBA322326530

GEAR

Fixing, A

1шт.

4

SBA322501180

SHAFT

1шт.

6

SBA322420040

KEY

6шт.

8

300633

SNAP RING,M80, Internal

1шт.

9

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

10

SBA322613270

COUPLING

4шт.

11

SBA042209006

BEARING ASSY

Needle

4шт.

12

SBA322383250

GEAR

Counter, B

1шт.

13

SBA322410080

RING

Synchronizer

4шт.

14

SBA398214370

SPRING

4шт.

15

SBA322031561

GEAR

2шт.

17

SBA322382910

GEAR

Counter, B

1шт.

18

SBA052300300

O-RING

1шт.

19

SBA322560550

SHAFT

Back Gear

1шт.

20

SBA042209022

NEEDLE

Bearing

2шт.

21

SBA322372200

GEAR

Counter, A

1шт.

22

SBA399260620

THRUST WASHER

1шт.

23

SBA322383270

GEAR

Counter, B

1шт.

24

SBA322383260

GEAR

Counter, B

1шт.

25

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

1шт.

26

SBA322327010

GEAR

Fixing, A

1шт.

27

SBA399233230

COLLAR

1шт.

28

SBA322327020

GEAR

Fixing, A

1шт.

29

SBA199280560

SHIM,0.1mm Thk

1шт.

USED BETWEEN REF 2 & 3 WHEN USING SBA399231001 COLLAR

1шт.

30

SBA199280580

SHIM

0.2T

1шт.

USED BETWEEN REF 2 & 3 WHEN USING SBA399231001 COLLAR

1шт.
