Запчасти Case IH FARMALL 55 (03.02.01) - CLUTCH CASE - SSS (03) - TRANSMISSION

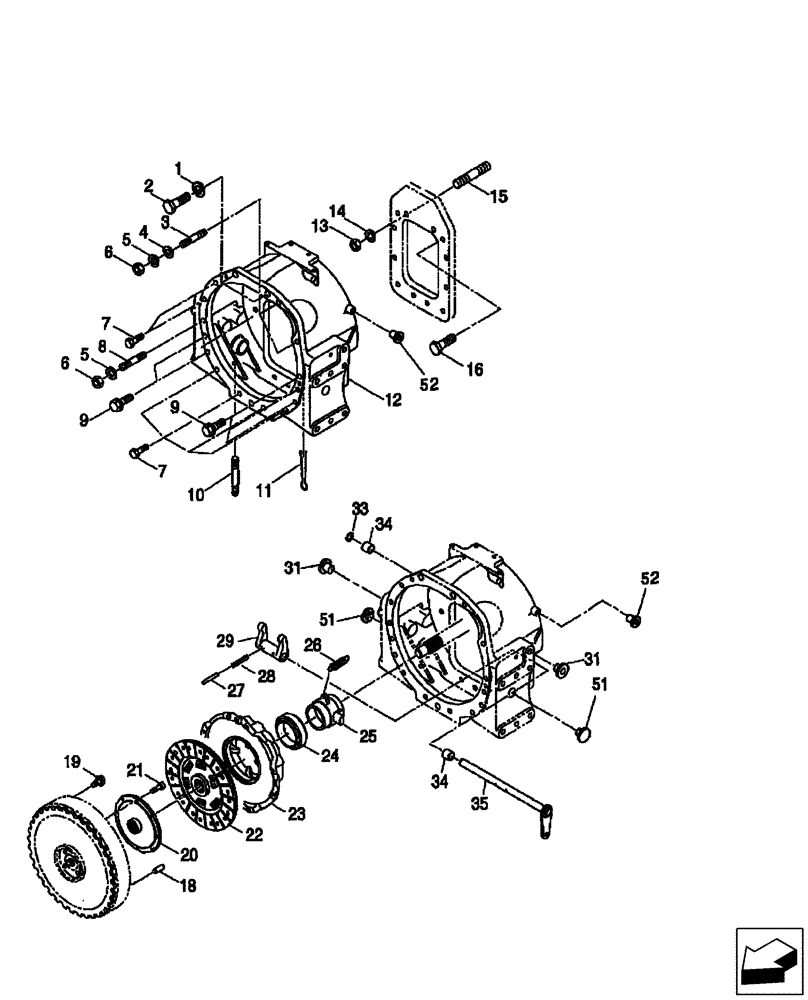

Схема запчастей Case IH FARMALL 55 - (03.02.01) - CLUTCH CASE - SSS (03) - TRANSMISSION
16
9
5
52
20
31
25
7
51
24
6
34
31
14
1
33
21
15
6
51
35
13
23
29
2
11
8
7
10
28
27
18
3
22
28
19
5
52
34
4
12
9

Артикул

Название

Примечание

Количество

1

280248

LOCK WASHER,9/16"

2шт.

2

SBA010331250

BOLT

M12 x 50

2шт.

3

SBA012111030

STUD,M10 x 30

2шт.

4

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

5

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

3шт.

6

100016

NUT,M10 x 1.5, Cl 8

3шт.

7

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

6шт.

8

SBA012111040

SCREW

Stud

1шт.

9

SBA011511045

BOLT

M10 x 45

5шт.

10

SBA012110855

STUD,M8 x 55

1шт.

11

SBA030104020

PIN

Split

1шт.

12

SBA320111860

CASE

Clutch

1шт.

13

SBA020600014

NUT

M14

2шт.

14

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

15

SBA012109258

BOLT

Stud

2шт.

16

SBA010109368

BOLT

10шт.

18

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

3шт.

19

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

6шт.

20

SBA322613250

COUPLING

Flex, No Pilot Bearing Used

1шт.

21

86512134

HEX SOC SCREW,M6 x 16mm, Cl 12.9

8шт.

22

SBA320400650

CLUTCH DRIVING PLATE

Disc, Clutch DIA 275, FARMALL 55

1шт.

22

SBA320400650R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

22

SBA320400650C

CORE-CLUTCH PLATE

Return Number, FARMALL 55

1шт.

22

SBA320400670

CLUTCH

Disc, Clutch, FARMALL 60

1шт.

22

SBA320400670R

REMAN-CLUTCH PLATE

Farmall 60 w/ROPS

1шт.

22

SBA320400670C

CORE-CLUTCH PLATE

Return Number

1шт.

23

SBA320450310

CLUTCH, PRESSURE PLA

DIA 328, FARMALL 55

1шт.

23

SBA320450310R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

23

SBA320450310C

CORE-CLUTCH PLATE

Return Number, FARMALL 55

1шт.

23

SBA320450330

CLUTCH

Presure Plate, FARMALL 60

1шт.

23

SBA320450330R

REMAN-CLUTCH PLATE

Farmall 60 w/Cab

1шт.

23

SBA320450330C

CORE-CLUTCH PLATE

Return Number

1шт.

24

SBA398560910

BEARING ASSY,87.96mm OD x 54.98mm ID x 21.60mm Thk

Release

1шт.

25

SBA320310610

HUB

Release

1шт.

26

SBA398210070

SPRING

1шт.

27

300869

LOCK PIN,6mm OD x 40mm L, Slotted

2шт.

28

SBA030303540

PIN

Spring

2шт.

29

SBA320260030

SHIFT, FORK

Clutch

1шт.

31

SBA398460010

PLUG,M19

Blank

14шт.

33

11066676

SNAP RING,M18, Ext

1шт.

34

SBA398510010

DRIVE BUSHING

2шт.

35

SBA320201380

SHAFT

1шт.

51

SBA398110760

COVER

2шт.

52

SBA398460210

PLUG

2шт.

Выбрано товаров: 44
