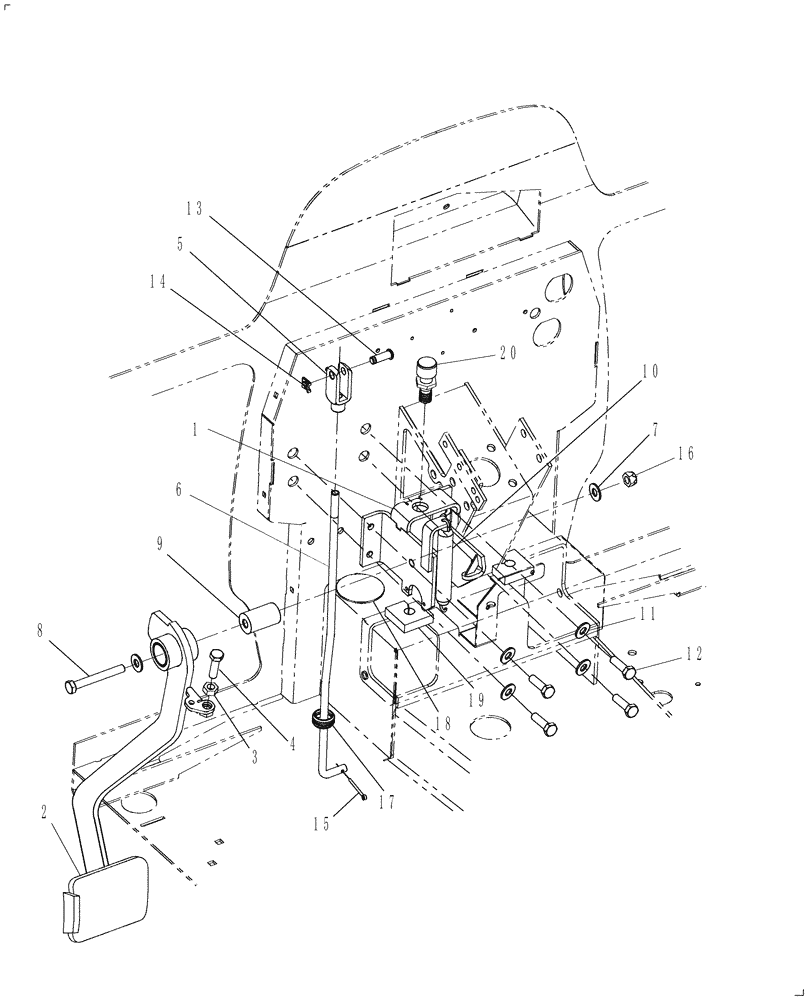

Запчасти Case IH FARMALL 55 (03.01.06) - CLUTCH PEDAL - ON & ABOVE PIN Z8DH22043 - SSS (03) - TRANSMISSION

1

87722528

BRACKET, SUPPORTING

Clutch

1шт.

2

87722520

PEDAL

EHSS

1шт.

3

100016

NUT,M10 x 1.5, Cl 8

1шт.

4

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

5

236323A1

CLEVIS

1шт.

6

87635236

LINKAGE

Clutch

1шт.

7

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

8

120116

SCREW,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

9

87653718

HUB

Shaft, Clutch Pedal

1шт.

10

87476927

SPRING

Spring, Clutch

1шт.

11

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

4шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

13

192869A1

CLEVIS PIN

1шт.

14

193182A1

CLIP

1шт.

15

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

16

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

17

87550538

GROMMET

1шт.

18

87448669

SEAL

1шт.

19

87656851

FOAM

1шт.

20

SBA385200891

SWITCH

Clutch Pedal

1шт.
