(02.05) - FUEL TANK & FIREWALL

Запчасти Case IH FARMALL 55 (02.05) - FUEL TANK & FIREWALL (02) - ENGINE EQUIPMENT

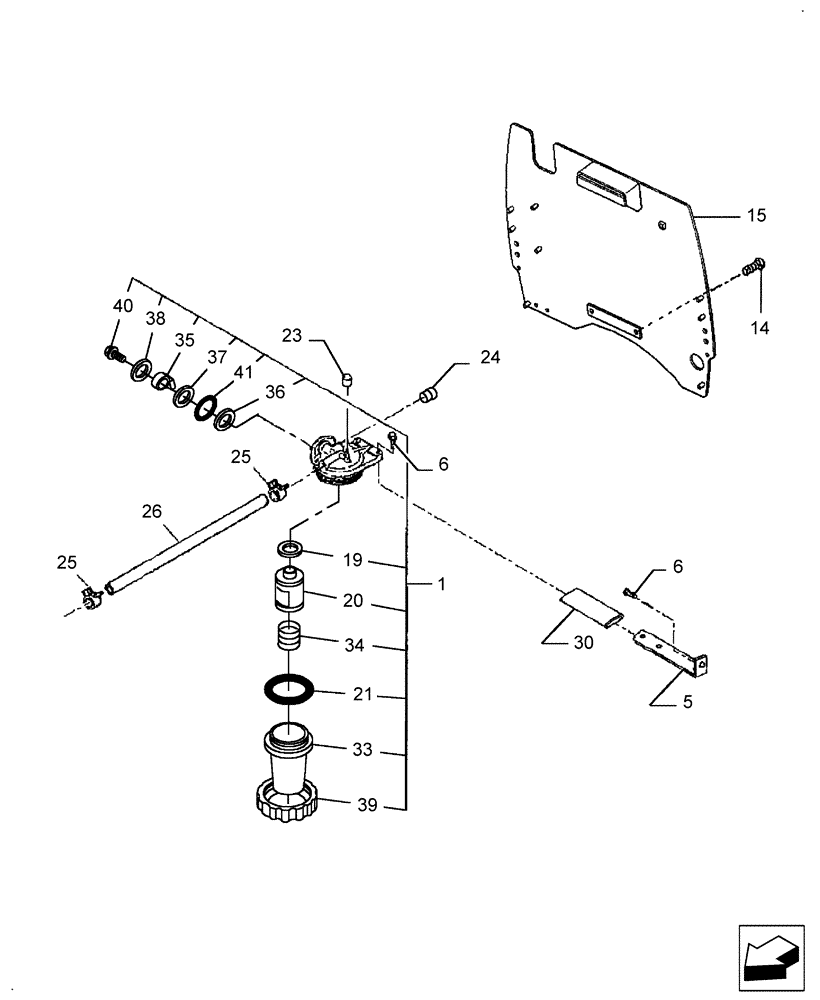

Схема запчастей Case IH FARMALL 55 - (02.05) - FUEL TANK & FIREWALL (02) - ENGINE EQUIPMENT
19
15
40
1
21
34
30
35
37
36
26
6
38
41
5
20
14
6
23
39
33
24
25
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA360700220

FUEL FILTER

Includes: Ref. 19-21, 33-41

1шт.

5

SBA360560320

SUPPORT

Filter

1шт.

6

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

3шт.

14

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

15

SBA310353830

PLATE

1шт.

19

SBA052100160

O-RING

1шт.

20

87300042

FUEL FILTER

1шт.

21

SBA052300650

O-RING,64.4mm ID x 3.1mm Width

1шт.

23

SBA498190090

CAP COVER

2шт.

24

SBA398460350

PLUG

1шт.

25

SBA067200130

CLAMP

3шт.

26

SBA360770300

RIGID TUBE

Fuel

1шт.

30

SBA068109097

PLASTIC-RUBBER TUBE

1шт.

33

SBA360710050

FILTER BOWL

1шт.

34

SBA360740120

SPRING

1шт.

35

SBA360740116

LEVER

1шт.

36

SBA360740117

RUBBER RING

1шт.

37

SBA360740118

WASHER

1шт.

38

SBA360740119

PLATE

1шт.

39

SBA360740115

NUT

1шт.

40

NS

NOT SERVICED

2шт.

41

SBA052400290

O-RING

1шт.
