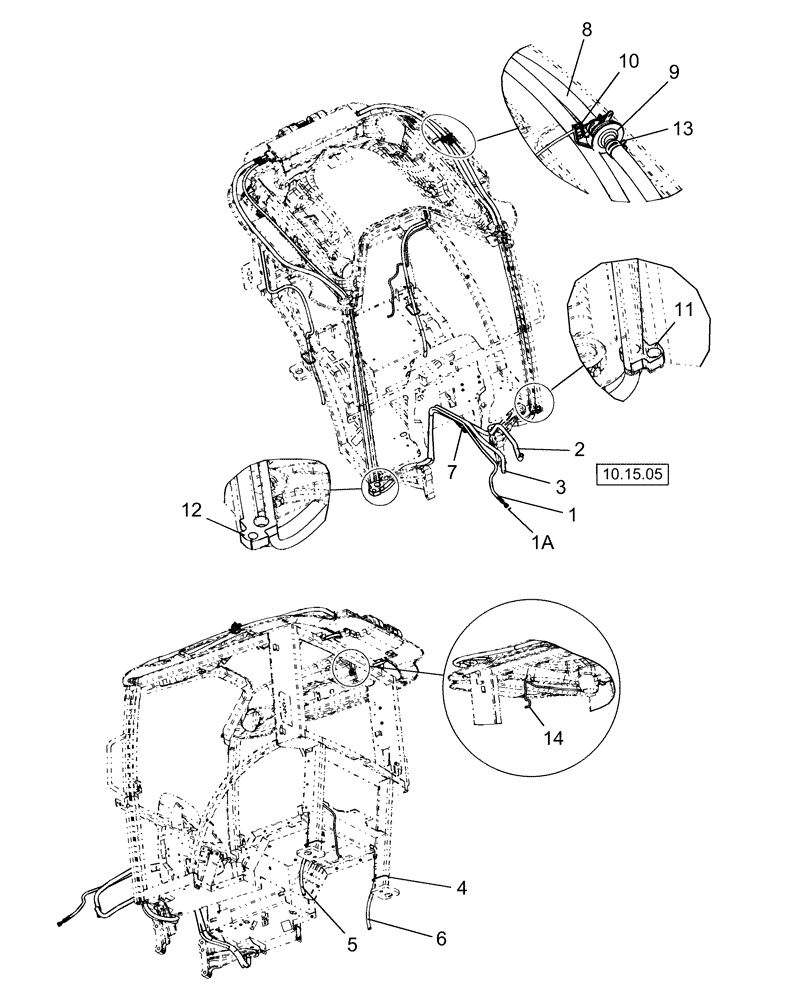

Запчасти Case IH FARMALL 55 (10.15.04) - HOSES, HVAC (10) - OPERATORS PLATFORM/CAB

1

87549117

HOSE ASSY.

A/C Liquid Includes: Ref. 1A

1шт.

1a

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

2

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Supply. Cut to 3556mm (140")

1шт.

Bulk Stock 50' Roll

1шт.

3

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Return. Cut to 5000mm (196.8")

1шт.

Bulk Stock 50' Roll

1шт.

4

PL

PROCURE LOCALLY

Cable Tie

2шт.

5

198091C1

HOSE,12.95mm ID x 15240mm L

Condensate, Left. Cut to 2210mm (87.01") Sold By The Foot

1шт.

6

198091C1

HOSE,12.95mm ID x 15240mm L

Condensate, Right. Cut to 2210mm (87.01") Sold By The Foot

1шт.

7

87549118

HOSE ASSY.

A/C Suction

1шт.

8

1958774C1

HEATER HOSE

Heater Supply

1шт.

9

1331087C1

HEATER VALVE

Heater Control

1шт.

10

1954626C1

SPRING CLIP

Water Valve

1шт.

11

87315315

GROMMET

Grommet, LH APost

1шт.

12

87315316

Grommet, RH APost

1шт.

14

1954736C1

HOSE CLAMP,#24

Heater

2шт.

15

87343662

WINDSHIELD WASHER

Tubing

1шт.
