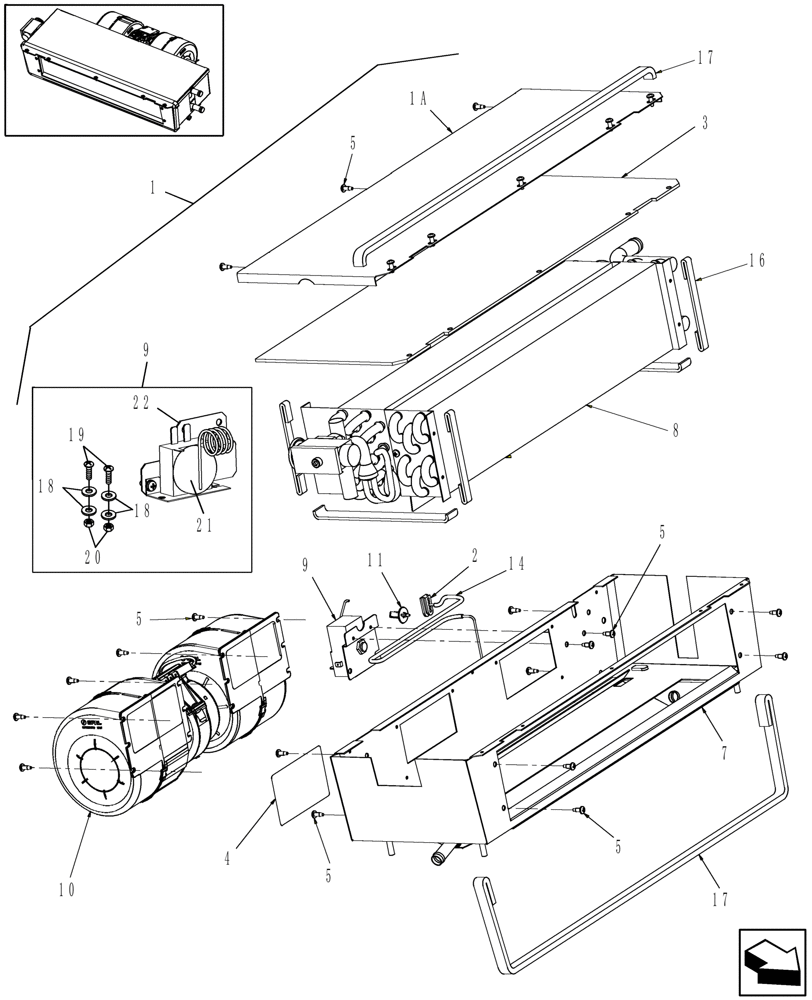

Запчасти Case IH FARMALL 55 (10.15) - HVAC BOX (10) - OPERATORS PLATFORM/CAB

1

87334819

AIR CONDITIONER,Assembly

Includes: Ref. 1A-16

1шт.

1a

87527159

PLATE

Cover

1шт.

2

87527588

GROMMET

1шт.

3

87527590

SEAL

1шт.

4

NS

NOT SERVICED

Serial Number Tag

1шт.

5

86632692

SELF-TAP SCREW,Phillips Drive, Pan HD, #8 - 18 x 1/2"

8-18 x 1/2 Pan Head

24шт.

6

87527160

HARNESS

Wire

1шт.

Not Illustrated

1шт.

7

87527161

BOX

Case

1шт.

8

87527589

EVAPORATOR

Heater Evaporator Refer to Fig. 10.15.02 for Components

1шт.

9

6914382

THERMOSTATIC SWITCH

Switch, When Replacing 6914382 Thermostat Switch Please Order 84240633 Air Conditioning Temperature Control Switch Service Kit (Includes: Thermostat Switch)

1шт.

9

84240633

KIT

Thermostat Switch Includes: Ref. 18-22

1шт.

10

87527163

BLOWER

12V

1шт.

11

84320229

CABLE TIE

CABLE STRAP

1шт.

12

1954475C1

ROLL

Tape, Insulation Cut to 1.5' Long

1шт.

14

87527582

INSULATION

Tubing, Insulation Cut to 1.5' Long

1шт.

16

1340329C1

SEAL

Cut to 4.2' Long

1шт.

17

377566A1

GASKET

Urethane Cut to 4.7' Long

1шт.

18

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

19

190003820075

SCREW,M4 x 12mm, Cl 4.8

M4 x 12mm

2шт.

20

87016570

NUT

M4

2шт.

21

87541276

THERMOSTATIC SWITCH

Control Switch

1шт.

22

84240631

BRACKET

Switch

1шт.
