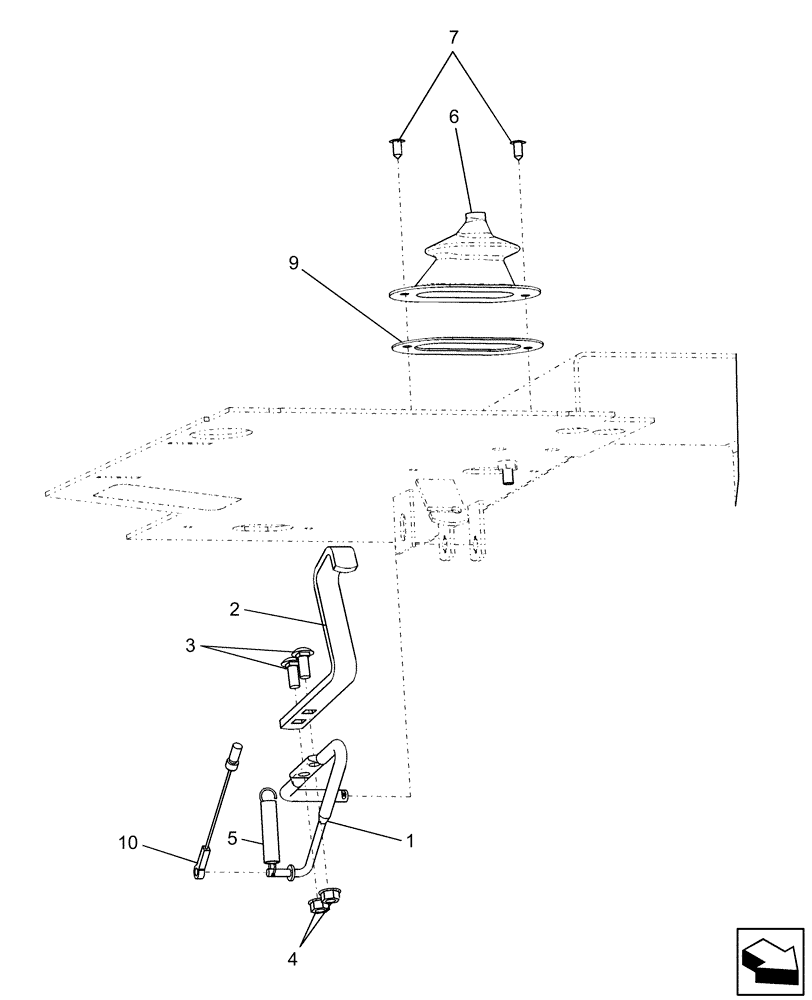

Запчасти Case IH FARMALL 55 (10.11.04) - FOOT THROTTLE (10) - OPERATORS PLATFORM/CAB

1

86400126

SHAFT

Accelerator Pedal

1шт.

2

87538077

PEDAL

Foot Throttle

1шт.

3

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

5

86530816

SPRING

Safety Hook

1шт.

6

86403754

BOOT

Difflock

1шт.

7

87561206

CLIP

Christmas Tree

2шт.

8

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

9

86405411

SUPPORT

Ring Boot

1шт.

10

SBA312070860

WIRE HARNESS

Foot Throttle Cable

1шт.
